SELECT A DIAGRAM

02 - Cabinet


03 - Breaker And Partition


04 - Air Flow


05 - Dispenser Front


06 - Solid State


07 - Refrigerator Door


08 - Freezer Door


09 - Unit


10 - Freezer Interior


11 - Refrigerator Interior


12 - Ice Maker


13 - Air Flow And Control


14 - Serva-door, Parts Not Illustrated

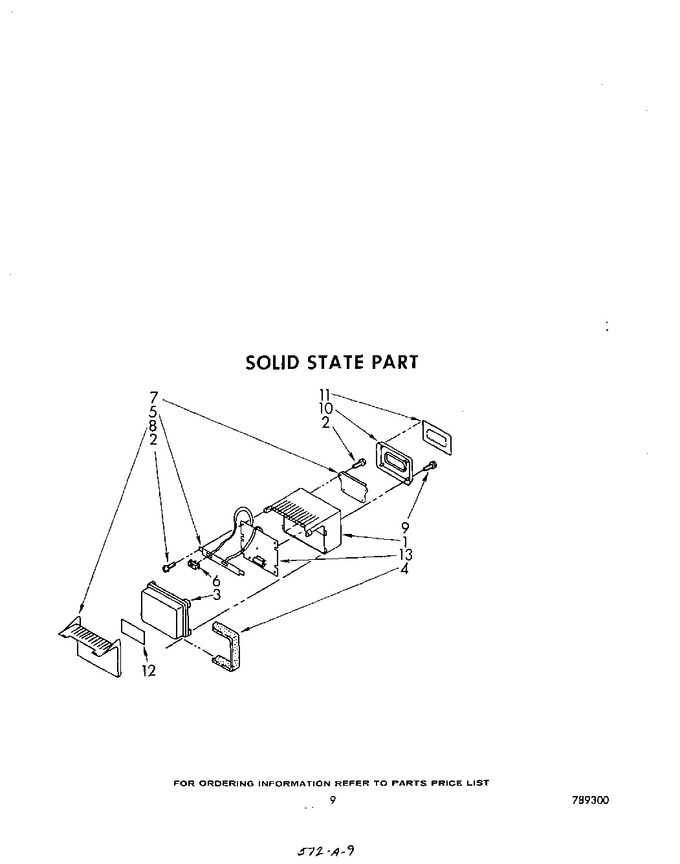

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	939179		Housing		Appelez-nous	-
2	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
3	939192		Insulation, Control Box		Appelez-nous	-
4	939993		Gasket, Control Box Insulation		Appelez-nous	-
5	939186		Switch & Sensor Bracket		Appelez-nous	-
6	939187		Switch		Appelez-nous	-
7	939190		Filter		Appelez-nous	-
8	946141		Cover, Housing		Appelez-nous	-
9	W11693756		Screw, 8 X 5/8 (4)   (Replaces: 489065)			Immediately	$ 14.76
10	939195		Escutcheon		Appelez-nous	-
11	1101471		Insert, Escutcheon (toast)		Appelez-nous	-
11	945216		Insert, Escutcheon (almond)		Appelez-nous	-
11	945215		Insert, Escutcheon (golden Harvest)		Appelez-nous	-
11	945213		Insert, Escutcheon (white, Coffee)		Appelez-nous	-
11	1101472		Insert, Escutcheon (platinum)		Appelez-nous	-
12	940763		Label System, Sentinel Cover		Appelez-nous	-
13	939181		Control Board Assembly		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
