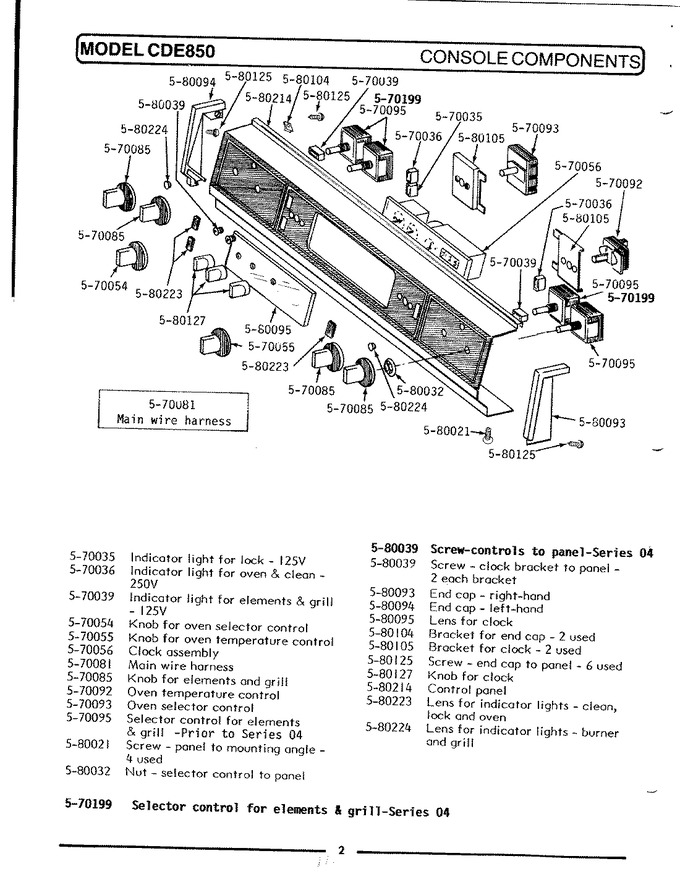

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	570035		Indicator Light	-	Appelez-nous	-
2	570036		Indicator Light	-	Appelez-nous	-
3	570039		Indicator Light	-	Appelez-nous	-
4	570054		Knob For Selector Switch	-	Appelez-nous	-
5	570055		Knob For Temperature Contro	-	Appelez-nous	-
6	570056		Clock	-	Appelez-nous	-
7	570081		Main Wire Harness	-	Appelez-nous	-
8	12200034		Knob For Elements And Grill   (Replaces: 570085)	-			$ 111.03
9	570092		Oven Temperature Control	-	Appelez-nous	-
10	570093		Oven Selector Control	-	Appelez-nous	-
11	W11120795		Selector Control   (Replaces: 570095)	-		Immediately	$ 107.28
12	W11233072		Screw   (Replaces: 580021)	-		Immediately	$ 14.72
13	580032		Nut	-	Appelez-nous	-
14	W11120791		Infinite Switch   (Replaces: 570199)	04		Immediately	$ 114.98
15	580039		Screw	04	Appelez-nous	-
15	580039		Screw	-	Appelez-nous	-
17	580093		End Cap	-	Appelez-nous	-
18	580094		End Cap	-	Appelez-nous	-
19	580095		Lens For Clock	-	Appelez-nous	-
20	580104		Retaining Bracket	-	Appelez-nous	-
21	580105		Clock Bracket	-	Appelez-nous	-
22	580125		Screw	-	Appelez-nous	-
23	580127		Knob For Clock	-	Appelez-nous	-
24	580214		Control Panel	-	Appelez-nous	-
25	580223		Lens For Indicator Lights	-	Appelez-nous	-
26	580224		Lens For Indicator Lights	-	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
