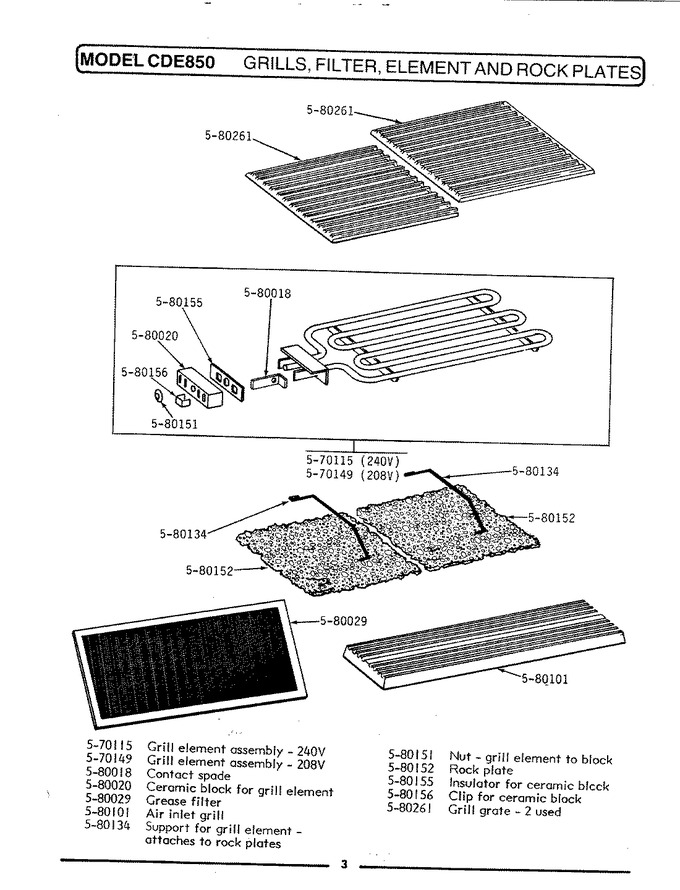

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	570115		Grill Element Assembly 240v	-	Appelez-nous	-
2	570149		Grill Element Assembly 208v	-	Appelez-nous	-
3	Y708572		Contact Spade   (Replaces: 580018)	-		Immediately	$ 13.23
4	WPY708730		Terminal Block   (Replaces: 580020)	-		Immediately	$ 102.01
5	WP71002111		Grease Filter   (Replaces: 580029)	-		Immediately	$ 39.07
6	580101		Air Inlet Grill	-	Appelez-nous	-
7	COMM PART		Support For Grill Element   (Replaces: 580134)	-	Appelez-nous	-
8	Y708862		Nut   (Replaces: 580151)	-			$ 15.25
9	580152		Rock Plate	-	Appelez-nous	-
10	580155		Insulator	-	Appelez-nous	-
11	580156		Clip	-	Appelez-nous	-
12	580261		Grill Grate	-	Appelez-nous	-
