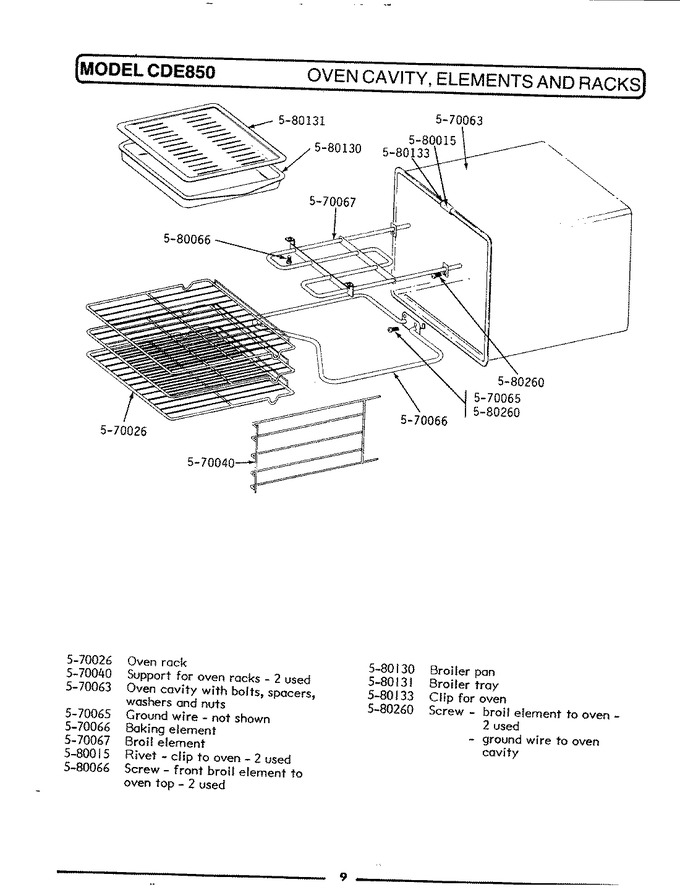

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP75614		Wire Connector   (Replaces: 201110)	-			$ 51.81
2	40A15		Light Bulb For Oven   (Replaces: 570019)	-		Immediately	$ 1.98
3	570044		Convection Impeller	-	Appelez-nous	-
4	570063		Oven Cavity	-	Appelez-nous	-
5	570092		Oven Temperature Control	-	Appelez-nous	-
6	W11233072		Screw   (Replaces: 580013)	-		Immediately	$ 14.72
7	WP488234		Screw   (Replaces: 580025)	-			$ 7.08
8	WP12990527		Screw   (Replaces: 580027)	-		Immediately	$ 8.76
9	580028		Receptacle For Oven Light	-	Appelez-nous	-
10	580030		Tee Nut For Oven	-	Appelez-nous	-
11	580031		Screw	-	Appelez-nous	-
12	580041		Insulation Wrap For Oven	-	Appelez-nous	-
13	580042		Insulation For Oven Back	-	Appelez-nous	-
14	WPY706189		Screw   (Replaces: 580066)	-		Immediately	$ 7.55
15	580075		Washer	-	Appelez-nous	-
16	580077		Screw	-	Appelez-nous	-
17	580080		Front Plate	-	Appelez-nous	-
18	580081		Motor Cover - Front	-	Appelez-nous	-
19	580082		Back Plate - Convection	-	Appelez-nous	-
20	580085		Bulb Clip	-	Appelez-nous	-
21	580088		Screw	-	Appelez-nous	-
22	WP74003976		Washer   (Replaces: 580103)	-			$ 7.55
23	580128		Set Screw For Impeller	-	Appelez-nous	-
24	580147		Bracket For Convection Moto	-	Appelez-nous	-
25	580177		Spacer For Oven	-	Appelez-nous	-
