Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WPY702338 Oven Door Seal   (Replaces: 570025) - In-Stock Immediately $ 201.29

2 COMM PART Window Assembly   (Replaces: 570029) - Appelez-nous -
3 570049 Inner Door Panel 01 Appelez-nous -
4 570050 Liner For Door - Appelez-nous -
5 570087 Handle For Oven Door - Appelez-nous -
6 W11233072 Screw   (Replaces: 580013) - In-Stock Immediately $ 14.72

7 WP210720 Rivet   (Replaces: 580015) - Special Order $ 14.16

8 W11164114 Tr Hd Screw - No.10-24 X 3/4   (Replaces: 580016) - Special Order $ 4.38

9 W11233072 Screw   (Replaces: 580021) - In-Stock Immediately $ 14.72

10 580038 Bushing - Appelez-nous -
11 570176 Inner Door Panel 02 Appelez-nous -
12 580044 Insulation-lower Panel - Appelez-nous -
13 580045 Insulation-upper Panel - Appelez-nous -
14 580050 Baffle For Door - Appelez-nous -
15 COMM PART Washer   (Replaces: 580067) - Appelez-nous -
16 580069 Retainer - Appelez-nous -
17 580073 Fastener - Appelez-nous -
18 Y580083 Latch Plate - Appelez-nous -
19 Y580084 Bracket - Stand-off - Appelez-nous -
20 580091 Insulation - Oven Door - Appelez-nous -
21 580109 Push-in Nut - Appelez-nous -
22 W10840861 Pad Spacer   (Replaces: 580111) - Special Order $ 10.37

23 580217 Frame-outer Door - Appelez-nous -
24 580220 Outer Glass-screened - Appelez-nous -
25 580221 Spacer Pad For Handle - Appelez-nous -
26 580222 Panel-perforated - Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

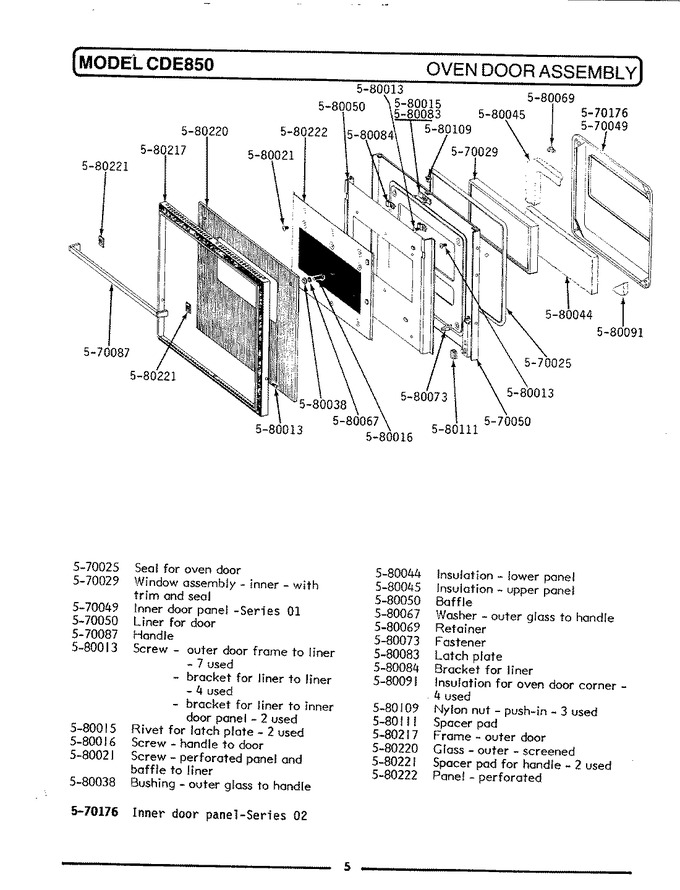

Diagram for CDE850
