SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts, Optional Parts (not Included)

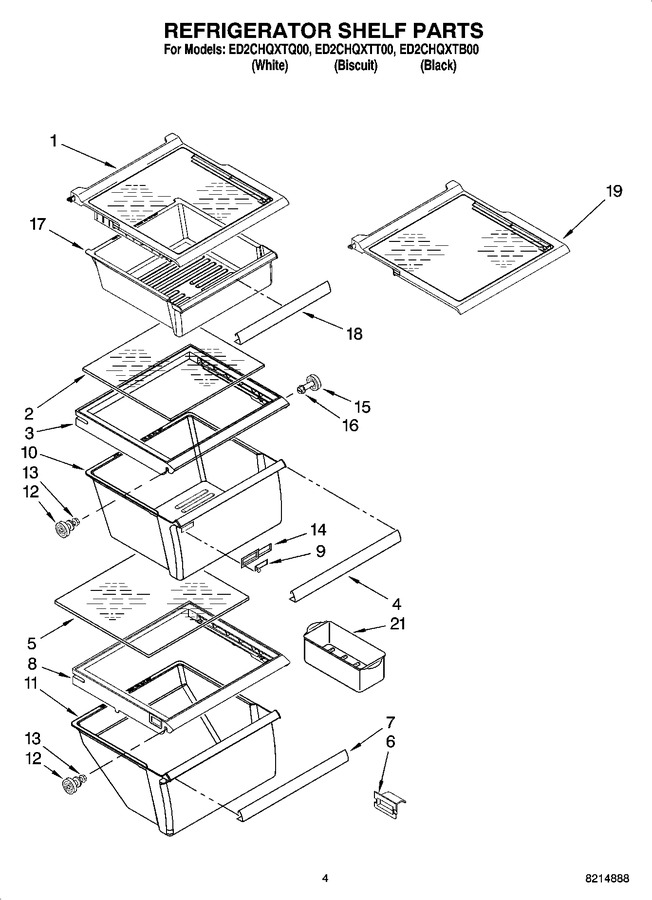

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10276341		Shelf, Snack Pan   (Replaces: 2309523)				$ 217.50
2	W10864399		Glass, Cover   (Replaces: 2174150)				$ 220.98
3	W10508993		Cover, Crisper   (Replaces: 2209698)				$ 291.29
4	WP2179234		Trim, Pan   (Replaces: 2255593)				$ 84.35
5	W10864399		Glass, Cover   (Replaces: 2179259)				$ 220.98
6	2179350		Deflector				$ 81.80
7	WP2179234		Trim, Meat Pan   (Replaces: 2255592)				$ 84.35
8	W10508993		Cover, Meat Pan   (Replaces: 2311726)				$ 291.29
9	WP2179342		Slide, Humidity Control   (Replaces: 2179342)				$ 29.14
10	WP2188656		Crisper Pan   (Replaces: 2188652)				$ 136.40
11	WP2188664		Meat Pan   (Replaces: 2188654)			Immediately	$ 85.30
12	W11223328		Stud Assembly   (Replaces: 2196485)			Immediately	$ 14.07
13	WP3-24004-109		Screw   (Replaces: 3400894)				$ 8.05
14	WP2179343		Housing, Humidity Control   (Replaces: 2179343)				$ 32.40
15	WP2196483		Stud Assembly   (Replaces: 2196483)				$ 10.35
16	WP3400806		Screw   (Replaces: 8281158)				$ 7.71
17	WP2309517		Snack Pan   (Replaces: 2309518)				$ 126.72
18	WP2179243		Trim, Handle   (Replaces: 2309519)				$ 104.43
19	WPW10276354		Shelf Assembly, Spillguard (2)   (Replaces: 2309561)				$ 252.54
21	W10136387A		Egg Bin   (Replaces: 2311722)				$ 18.61

    View Diagram in Separate Window       Print Part List
