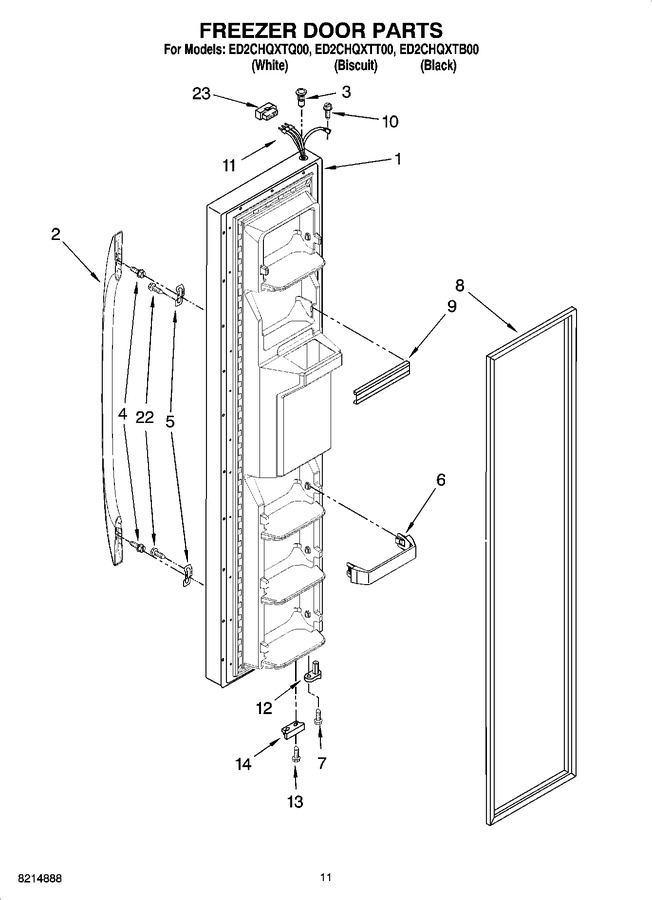

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2309601W		Freezer Door (includes Item 8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	2309601T		Freezer Door (includes Item 8 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
1	2309601B		Freezer Door (includes Item 8 And Dispenser Front Parts) (black)		Appelez-nous	-
2	W10187086		Handle (includes 4) (black)   (Replaces: 2313345B)				$ 377.97
2	2313345W		Handle (includes 4) (white)		Appelez-nous	-
2	W10187087		Handle (includes 4) (biscuit)   (Replaces: 2313345T)		Appelez-nous	-
3	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 7.76
4	8533920		Screw				$ 5.27
5	WP2255411		Clip   (Replaces: 2255411)				$ 34.81
6	WP2309717		Trivet (4)   (Replaces: 2309717)				$ 55.85
7	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
8	2159072		Door Gasket, Magnetic (mist Beige)   (Replaces: 2309604)				$ 308.19
8	2159080		Door Gasket, Magnetic (black)   (Replaces: 2309654)				$ 310.39
9	WPW10307490		Trim, Door Shelf   (Replaces: 2209680)			Immediately	$ 23.11
10	WP489128		Screw   (Replaces: 488500)				$ 10.88
11	2311642		Wire Harness				$ 217.92
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: 489420)				$ 10.87
14	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 40.03
14	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 40.03
22	WP489491		Screw (4)   (Replaces: 489491)				$ 6.95
23	WP2154473		Connector   (Replaces: 2154473)				$ 23.65
