SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts

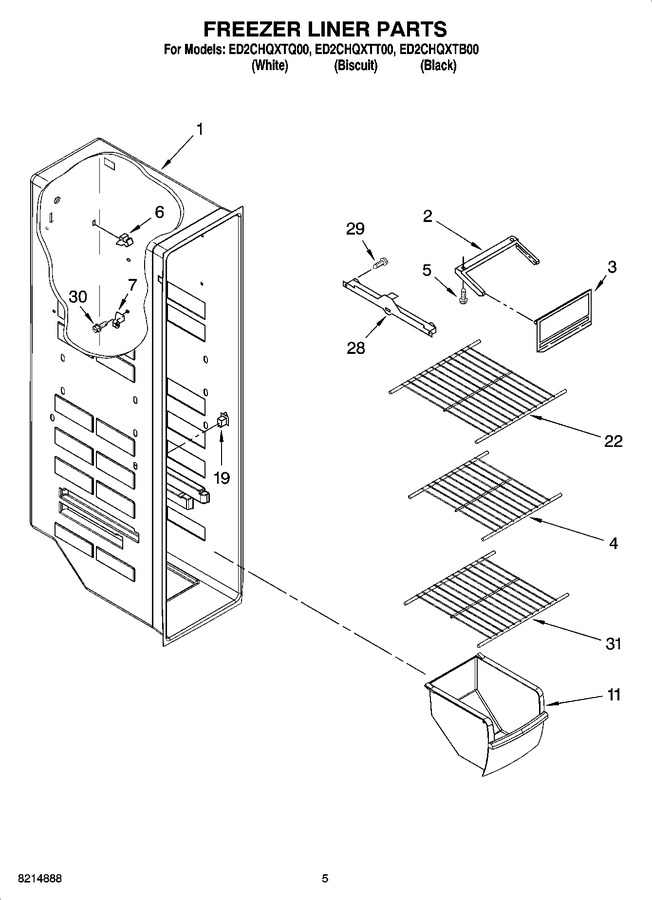

04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	1115380		Slide, Ice Door		Appelez-nous	-
3	2171712		Door, Ice Compartment				$ 66.58
4	WPW10318953		Shelf, Wire   (Replaces: 2309634)			Immediately	$ 83.58
5	WP489478		Screw   (Replaces: 489478)				$ 7.75
6	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.42
7	2196206		Support, Stud (4)		Appelez-nous	-
11	WP2309758		Freezer Bin   (Replaces: 2309758)			Immediately	$ 124.47
19	W11457217		Switch, Rocker Arm   (Replaces: 1115373)				$ 38.18
22	WPW10318952		Shelf Wire   (Replaces: 2309633)			Immediately	$ 88.08
28	W10845583		Slide, Container (right Side)   (Replaces: 1119293)				$ 123.92
28	W10845585		Slide, Container (left Side)   (Replaces: 1119237)				$ 132.77
29	718257		Screw (4)   (Replaces: 489100)		Appelez-nous	-
30	W10142289		Screw   (Replaces: 3400893)				$ 9.15
31	WPW10318951		Shelf, Wire   (Replaces: 2309632)				$ 81.68
