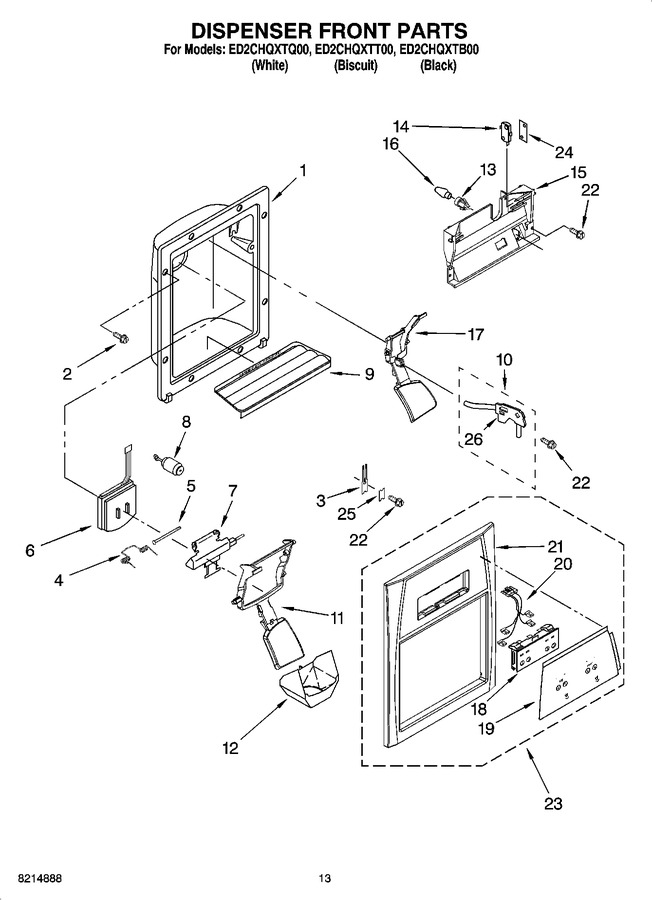

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.95 | ||||
| 3 | WP2194719 | Retainer, Levers (Replaces: 2194719) |
|
Immediately | $ 11.77 | ||||
| 4 | WPW10224328 | Spring, Torsion (Replaces: 2180209) |
|
$ 83.24 | |||||
| 5 | WP2196195 | Pin (Replaces: 2196195) |
|
$ 14.58 | |||||
| 6 | WP2180353 | Door, Ice (Replaces: 2180353) |
|
Immediately | $ 24.69 | ||||
| 7 | 2304355 | Door Mechanism Assembly |
|
- | |||||
| 8 | 2205686 | Mechanism Delay |
|
- | |||||
| 9 | WP2206671B | Grille, Overflow (black) (Replaces: 2206671B) |
|
$ 69.05 | |||||
| 9 | 2206671T | Grille, Overflow (biscuit) |
|
$ 27.69 | |||||
| 9 | WP2206671W | Grille, Overflow (white) (Replaces: 2206671W) |
|
$ 68.73 | |||||
| 10 | 8201537 | Water Fitting Assembly (includes Water Tube) (Replaces: 2304317) |
|
$ 134.13 | |||||
| 11 | 2255431T | Lever, Ice Dispenser (biscuit) |
|
$ 43.34 | |||||
| 11 | WP2255431W | Lever, Ice Dispenser (white) (Replaces: 2255431W) |
|
$ 102.09 | |||||
| 11 | WP2255431B | Lever, Ice Dispenser (black) (Replaces: 2255431B) |
|
$ 105.42 | |||||
| 12 | WP2180224 | Guide, Ice (Replaces: 2180224) |
|
Immediately | $ 27.63 | ||||
| 13 | 2180200 | Lamp Holder |
|
$ 98.66 | |||||
| 14 | WP2162361 | Switch (2) (Replaces: 2162361) |
|
Immediately | $ 27.34 | ||||
| 15 | WP2180226 | Bracket, Control (Replaces: 2183771) |
|
Immediately | $ 24.39 | ||||
| 16 | WP22002263 | Light Bulb (Replaces: 3406124) |
|
Immediately | $ 13.66 | ||||
| 17 | WP2255432B | Lever, Water Dispenser (black) (Replaces: 2255432B) |
|
$ 106.06 | |||||
| 17 | WP2255432T | Lever, Water Dispenser (biscuit) (Replaces: 2255432T) |
|
$ 100.81 | |||||
| 17 | WP2255432W | Lever, Water Dispenser (white) (Replaces: 2255432W) |
|
$ 100.95 | |||||
| 20 | 2311650 | Wire Assembly |
|
$ 89.68 | |||||
| 22 | WP3400906 | Screw (Replaces: 489000) |
|
$ 7.84 | |||||
| 23 | 2311691W | Front Cover Assembly (includes Items 18, 19, 20 & 21) (white) |
|
- | |||||
| 23 | 2311691T | Front Cover Assembly (includes Items 18, 19, 20 & 21) (biscuit) |
|
- | |||||
| 23 | 2311691B | Front Cover Assembly (includes Items 18, 19, 20 & 21) (black) |
|
$ 262.14 | |||||
| 24 | 625834 | Spacer, Switch (2) |
|
$ 7.99 | |||||
| 25 | WP2195051 | Strain Relief (Replaces: 2195051) |
|
$ 11.67 | |||||
| 26 | WP2304673 | Bracket, Dispenser (Replaces: 2304673) |
|
$ 15.60 |
