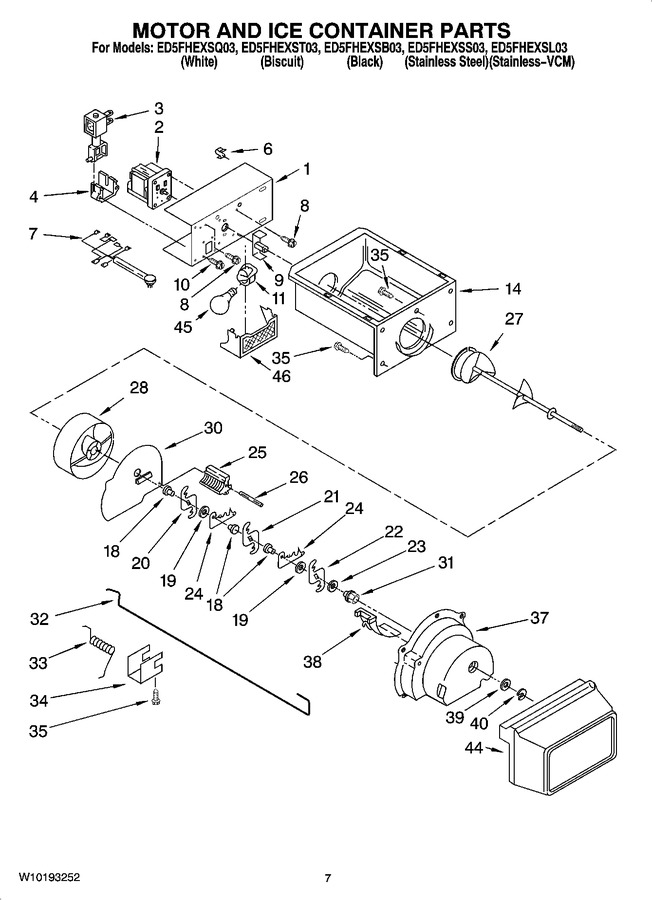

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2254587		Bracket, Motor		Appelez-nous	-
2	WP2188242		Motor, Dispenser   (Replaces: 2188385)				$ 368.69
3	WP2152713		Soleniod Assembly   (Replaces: 2152713)				$ 238.20
4	W10850503		Guide, Solenoid   (Replaces: 2149100)				$ 10.35
6	WP1115374		Clip, Wiring   (Replaces: 1115374)				$ 7.75
7	2311639		Wiring Assembly, Ice Dispenser   (Replaces: 2206501)				$ 140.16
8	WP489399		Screw   (Replaces: 489399)				$ 6.95
9	WPW10169511		Coupling, Motor   (Replaces: W10140958)				$ 23.34
10	WP489478		Screw   (Replaces: 489478)				$ 7.75
11	4387478		Socket, Light   (Replaces: 2162085)			Immediately	$ 110.16
14	WPW10670845		Ice Container   (Replaces: 2196091)				$ 189.70
18	WP1119005		Spacer, Step (3)   (Replaces: 1119005)				$ 11.18
19	WP1119007		Spacer, Flat (2)   (Replaces: 1119007)				$ 14.07
20	W10278731		Blade, Rotary   (Replaces: 2257022)				$ 86.54
21	W10278732		Blade, Rotary   (Replaces: 2257023)				$ 86.67
22	W10278733		Blade, Rotary   (Replaces: 2257024)				$ 86.67
23	489235		Washer, Plain				$ 8.05
24	1119009		Blade, Fixed (2)				$ 72.21
25	2157405		Block, Blade				$ 21.27
26	489229		Roll Pin				$ 46.16
27	W10422851		Auger   (Replaces: 2196295)				$ 165.85
28	4388736		Drum   (Replaces: 2305377)				$ 92.35
30	W10852691		Floating Baffle   (Replaces: 2171682)			Immediately	$ 33.19
31	WP1119018		Nut, Bearing   (Replaces: 1119018)				$ 7.52
32	W11596045		Control Arm   (Replaces: 2155231)				$ 33.82
33	1119020		Spring, Return				$ 18.22
34	1119021		Retainer Clip, Rod				$ 10.44
35	WP488787		Screw   (Replaces: 488886)				$ 10.58
37	WPW10185018		Housing, Crusher   (Replaces: 2180348)				$ 124.43
38	WP1119017		Deflector, Ice   (Replaces: 1119017)				$ 7.57
39	489234		Washer, Plain				$ 13.37
40	WP489236		Retainer Ring   (Replaces: 489236)			Immediately	$ 12.17
44	2204321		Front Cover, Ice Container		Appelez-nous	-
45	W11679940		Light Bulb   (Replaces: 2255743)			Immediately	$ 11.30
46	WP2171706		Light Lens, Dispenser   (Replaces: 2171706)				$ 91.34
100	WPW10312300		Ice Container (complete)   (Replaces: 2209780)				$ 369.61
