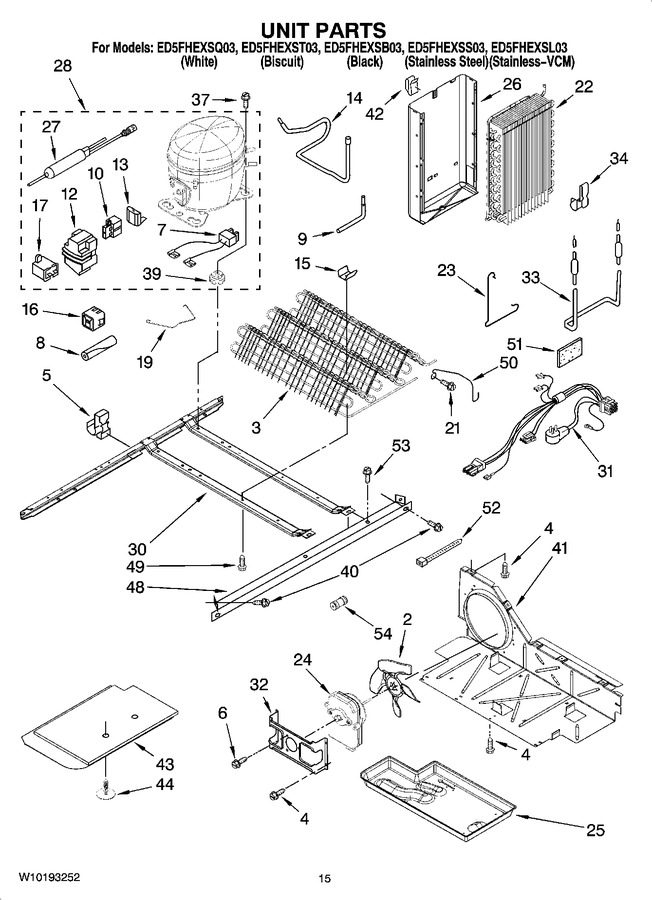

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | W11458267 | Fan Blade (Replaces: 2225834) |
|
Immediately | $ 23.99 | ||||
| 3 | 2324712 | Condenser Assembly (Replaces: W10121484) |
|
$ 308.05 | |||||
| 4 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.83 | ||||
| 5 | 2208280 | Clip, Wire & Tube |
|
- | |||||
| 6 | WP8533993 | Screw (Replaces: 8533993) |
|
$ 10.57 | |||||
| 7 | WP2172890 | Wire, Capacitor (service Only) (Replaces: 4387765) |
|
$ 8.10 | |||||
| 8 | W11751592 | Sleeve (Replaces: 2161302) |
|
Immediately | $ 20.30 | ||||
| 9 | 2325479 | Process Tube |
|
- | |||||
| 10 | 2183454 | Relay (service Only) |
|
- | |||||
| 12 | WP2162358 | Cover Service Only) (Replaces: 4387731) |
|
$ 90.75 | |||||
| 13 | WP2154697 | Overload, (service Only) (Replaces: 2154697) |
|
$ 130.73 | |||||
| 14 | 2205765 | Tube Suction |
|
$ 36.04 | |||||
| 15 | W10683556 | Clip, Condenser (Replaces: 2216914) |
|
$ 18.46 | |||||
| 16 | WP2304885 | Start Device, Combination (start Relay And Overload) For Production Compressor Only (Replaces: 2320153) |
|
$ 179.47 | |||||
| 17 | WPW10662129 | Capacitor (production) (Replaces: 2169373) |
|
Immediately | $ 58.86 | ||||
| 17 | WPW10662129 | Capacitor (service) (Replaces: 1118576) |
|
Immediately | $ 58.86 | ||||
| 19 | 2223313 | Clip, Retaining |
|
- | |||||
| 21 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.75 | |||||
| 22 | WP2188823 | Evaporator (Replaces: 2188823) |
|
Immediately | $ 363.32 | ||||
| 23 | 2161324 | Clamp |
|
- | |||||
| 24 | W10124096 | Fan, Motor (Replaces: W10130108) |
|
Immediately | $ 112.20 | ||||
| 25 | WPW10614158 | Tray, Evaporator (Replaces: 1105523) |
|
Immediately | $ 113.18 | ||||
| 26 | 2304289 | Heat Shield |
|
- | |||||
| 27 | W10843121 | Drier (production) (Replaces: 2319825) |
|
Immediately | $ 52.57 | ||||
| 27 | WPW10143759 | Drier (service) (Replaces: W10143759) |
|
Immediately | $ 30.78 | ||||
| 28 | W10139460 | Compressor (includes Items 7, 10, 12, 13, 17 & 27) (also Order 876765 Tube Kit) (Replaces: W10120460) |
|
$ 491.28 | |||||
| 30 | 2304904 | Unit Mounting Frame |
|
- | |||||
| 31 | 2187510 | Unit, Harness (includes Power Cord) |
|
- | |||||
| 32 | WP2181929 | Fan, Motor Bracket (Replaces: 2181929) |
|
$ 12.31 | |||||
| 33 | WP2323198 | Heater, Defrost (Replaces: 2323198) |
|
Immediately | $ 90.70 | ||||
| 34 | W11623163 | Clip (Replaces: 2304287) |
|
- | |||||
| 37 | 876811 | Screw (Replaces: 489373) |
|
$ 7.42 | |||||
| 39 | WP4387558 | Grommet (4) (service) (Replaces: 4387558) |
|
$ 6.95 | |||||
| 39 | 876811 | Grommet (4) (production) (Replaces: 1100826) |
|
$ 7.42 | |||||
| 40 | 489340 | Screw |
|
- | |||||
| 41 | W10896764 | Air Baffle (Replaces: 2196202) |
|
$ 96.38 | |||||
| 42 | 2155547 | Clip, Heat Shield |
|
- | |||||
| 43 | 2304899 | Unit Cover, Bottom |
|
- | |||||
| 44 | 489396 | Clip |
|
$ 10.72 | |||||
| 48 | 2305374 | Unit Mounting Rail |
|
$ 80.64 | |||||
| 49 | W11544659 | Screw (Replaces: 8281232) |
|
$ 13.67 | |||||
| 50 | 2260517 | Guard, Fan |
|
- | |||||
| 51 | W11553819 | Insulation, Sound Dampening (Replaces: 2169104) |
|
Immediately | $ 14.07 | ||||
| 52 | WPW10339879 | Strap (Replaces: 2172840) |
|
$ 7.90 | |||||
| 53 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.47 | |||||
| 54 | WPW10334458 | Union (Replaces: 2320322) |
|
$ 21.59 | |||||
| WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 105.25 | |||||
| 876764 | Valve, Access(3/16``) |
|
Immediately | $ 91.35 | |||||
| 978030 | Valve, Access (3/4``) |
|
$ 130.71 | ||||||
| 978029 | Valve Access (5/8``) |
|
$ 93.85 | ||||||
| 978028 | Valve, Access (1/2) |
|
- | ||||||
| SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 | ||||||
| 978026 | Valve, Access (5/16``) |
|
Immediately | $ 128.09 |
