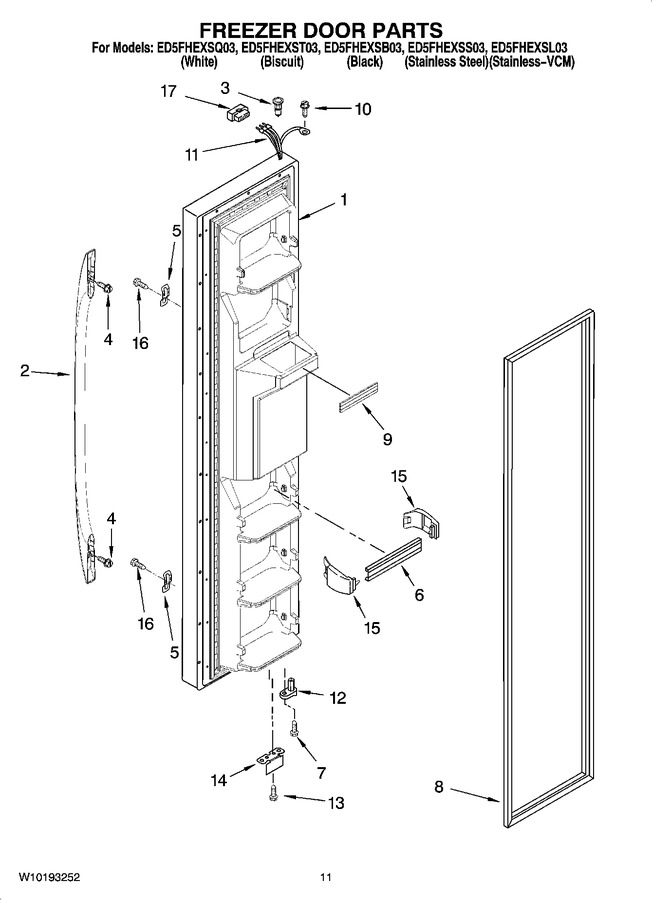

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2315206T		Freezer Door (includes Item 8 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
1	2315206B		Freezer Door (includes Item 8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	2315206S		Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless Steel)		Appelez-nous	-
1	2315206LG		Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless-vcm)		Appelez-nous	-
1	2315206W		Freezer Door (includes Item 8 And Dispenser Front Parts) (white)		Appelez-nous	-
2	W10136230		Handle (white)		Appelez-nous	-
2	WPW10136232		Handle (biscuit)   (Replaces: W10136232)				$ 345.30
2	WPW10136231		Handle (black)   (Replaces: W10136231)				$ 349.51
3	2301049		Thimble, Top (for Stainless Model)				$ 75.42
3	WP2182181		Thimble, Top (for White, Black, Biscuit And Stainless Vcm Models)   (Replaces: 2182181)				$ 7.76
4	8533920		Screw				$ 5.27
5	WP2255411		Clip   (Replaces: 2255411)				$ 34.81
6	2313199		Door Trim (4)   (Replaces: 2313199K)				$ 86.60
7	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
8	2159074		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221303)				$ 310.19
8	2159082		Door Gasket, Magnetic (black)   (Replaces: 2221314)				$ 316.66
9	WPW10307490		Trim, Door Shelf   (Replaces: 2209681)			Immediately	$ 23.11
10	WP489128		Screw   (Replaces: 488500)				$ 10.88
11	2311641		Wire Harness   (Replaces: 2206601)		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: 489420)				$ 10.87
14	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 40.03
14	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 40.03
15	2195917		End Cap (8)		Appelez-nous	-
16	WP489491		Screw (4)   (Replaces: 489491)				$ 6.95
17	WP2154473		Connector   (Replaces: 2154473)				$ 23.65
