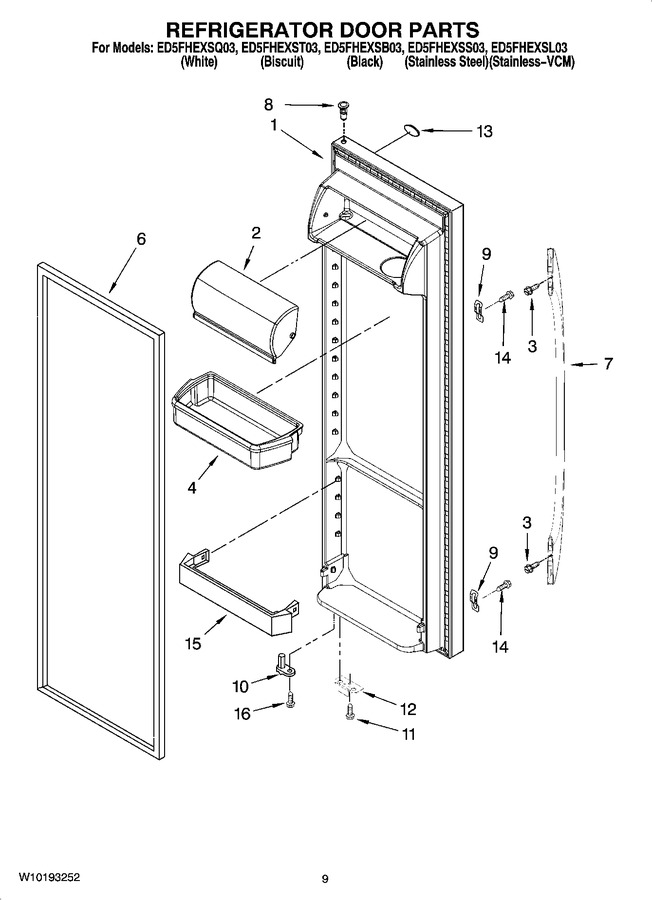

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2307095T | Refrigerator Door (includes Item 6) (biscuit) |
|
- | |||||
| 1 | 2307095B | Refrigerator Door (includes Item 6) (black) |
|
- | |||||
| 1 | 2307095S | Refrigerator Door (includes Item 6) (stainless Steel) |
|
- | |||||
| 1 | 2307095LG | Refrigerator Door (includes Item 6) (stainless Vcm) |
|
- | |||||
| 1 | 2307095W | Refrigerator Door (includes Item 6) (white) |
|
- | |||||
| 2 | WP2256101 | Door, Compartment (Replaces: 2256101) |
|
Immediately | $ 85.16 | ||||
| 3 | 8533920 | Screw |
|
$ 5.27 | |||||
| 4 | WPW10321304 | Door Bin (3) (Replaces: 2304235K) |
|
Immediately | $ 44.73 | ||||
| 6 | 2159083 | Door Gasket, Magnetic (black) (Replaces: 2221313) |
|
$ 251.49 | |||||
| 6 | 2159075 | Door Gasket, Magnetic (mist Beige) (Replaces: 2221302) |
|
Immediately | $ 317.14 | ||||
| 7 | WPW10136232 | Handle (biscuit) (Replaces: W10136232) |
|
$ 345.30 | |||||
| 7 | WPW10136231 | Handle (black) (Replaces: W10136231) |
|
$ 349.51 | |||||
| 7 | W10136230 | Handle (white) |
|
- | |||||
| 8 | WP2182181 | Thimble, Top (Replaces: 2308091) |
|
$ 7.76 | |||||
| 9 | WP2255411 | Clip (Replaces: 2255411) |
|
$ 34.81 | |||||
| 10 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182178) |
|
Immediately | $ 6.39 | ||||
| 11 | WP489483 | Screw (Replaces: 489420) |
|
$ 10.87 | |||||
| 12 | WP2206629B | Bracket, Door Stop (black) (Replaces: 2206629B) |
|
$ 40.03 | |||||
| 12 | WP2206629B | Bracket, Door Stop (chrome) (Replaces: 2206629) |
|
$ 40.03 | |||||
| 13 | WP2213265 | Nameplate (Replaces: 2255121) |
|
Immediately | $ 88.74 | ||||
| 14 | WP489491 | Screw (4) (Replaces: 489491) |
|
$ 6.95 | |||||
| 15 | WP2156022 | Trivet, Shelf (Replaces: 2156022) |
|
Immediately | $ 72.80 | ||||
| 16 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 7.82 |
