SELECT A DIAGRAM

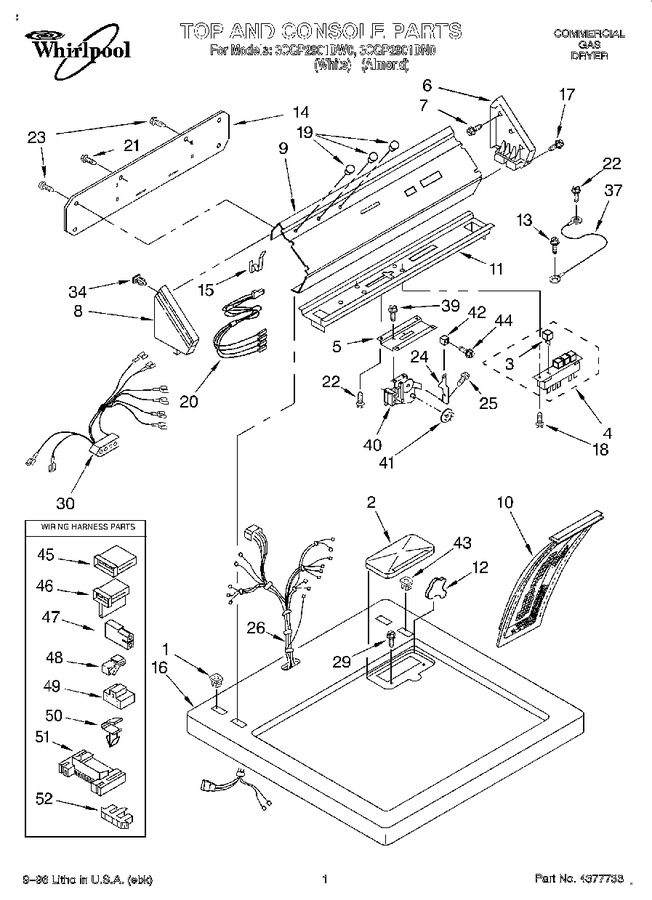

01 - Top And Console


02 - Cabinet


03 - Bulkhead, Lit/optional


04 - 3401772 Burner Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	358472		Nut, Push-in (4)		Appelez-nous	-
2	688150		Cover, Lint Screen (white)		Appelez-nous	-
2	689310		Cover, Lint Screen (almond)		Appelez-nous	-
3	3348587		Button (4)				$ 12.40
4	3394078		Switch, Pushbutton		Appelez-nous	-
5	3388374		Control, Bracket		Appelez-nous	-
6	63795		Cap, End. (r.h.)				$ 14.10
7	WPW10109200		Screw   (Replaces: 97787)			Immediately	$ 8.00
8	63789		Cap, End (l.h.)		Appelez-nous	-
9	3389679		Panel, Control		Appelez-nous	-
10	339392V		Screen, Lint   (Replaces: 339392)			Immediately	$ 41.91
11	3388375		Bracket, Control		Appelez-nous	-
12	WPW10044480		Hinge, Lint Lid (l.h.)   (Replaces: 339230)				$ 7.72
12	WPW10044470		Hinge, Lint Lid (r.h.)   (Replaces: 339229)				$ 7.72
13	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
14	386367		Panel, Rear		Appelez-nous	-
15	693141		Clip, Harness		Appelez-nous	-
16	3393386		Top (almond)		Appelez-nous	-
16	3393385		Top (white)		Appelez-nous	-
17	WP388326		Screw, 8a X 3/8   (Replaces: 388326)				$ 8.11
18	WP965173		Screw, 8-18 X 3/8   (Replaces: 9424101)			Immediately	$ 10.72
19	WP3348109		Lens, Amber (3)   (Replaces: 3348109)			Immediately	$ 12.51
20	3401760		Lights, Indicator		Appelez-nous	-
21	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.19
22	WP90767		Screw, 8-18 X 1/2   (Replaces: 697774)			Immediately	$ 7.82
23	W10850756		Screw, Ground   (Replaces: 697776)				$ 7.76
24	694583		Lever, Timer		Appelez-nous	-
25	WP3388228		Screw   (Replaces: 3388228)				$ 6.95
26	3401768		Harness, Wiring (complete)		Appelez-nous	-
29	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.06
30	3401663		Harness, Console		Appelez-nous	-
34	689559		Nut, Push-in		Appelez-nous	-
37	690853		Wire, Ground		Appelez-nous	-
39	W11808444		Screw, 8-32 X 5/16   (Replaces: 98139)		Appelez-nous	-
40	3389669		Timer, 50 Hz. (incl. 4 Pin Cam)		Appelez-nous	-
41	WP3387974		Cam (3 Pin (60 Min.))   (Replaces: 3387974)				$ 8.32
41	51-161-6		Cam (6 Pin (30 Min.))   (Replaces: 343777)				$ 34.52
41	WP339855		Cam (4 Pin (45 Min.))   (Replaces: 339855)				$ 8.37
42	3348574		Pushbutton		Appelez-nous	-
43	358473		Nut, Push-in				$ 5.84
44	310410		Screw		Appelez-nous	-
45	WP3403498		Connector, 3-position (gas Valve)   (Replaces: 3403498)				$ 6.95
46	WP3403499		Connector, 2-position Gas Valve   (Replaces: 3403499)				$ 5.73
47	717252		Plug, 2-way		Appelez-nous	-
48	689180		Clip, Retainer		Appelez-nous	-
49	3401144		Connector (relay/buzzer)				$ 12.20
50	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.79
51	3395683		Connector (motor)			Immediately	$ 51.86
52	299885		Wire, Splicing 240 Volt		Appelez-nous	-
52	3397269		Connector, Timer				$ 25.55
52	3394926		Screw (4)		Appelez-nous	-
52	W10851673		Transformer   (Replaces: 3393929)				$ 397.59
52	3393939		Harness Connect Use 10875 Wire, Splicing (120 Volt)		Appelez-nous	-
52	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 23.02
52	WP308685		Screw (2)   (Replaces: 3357011)			Immediately	$ 7.87
