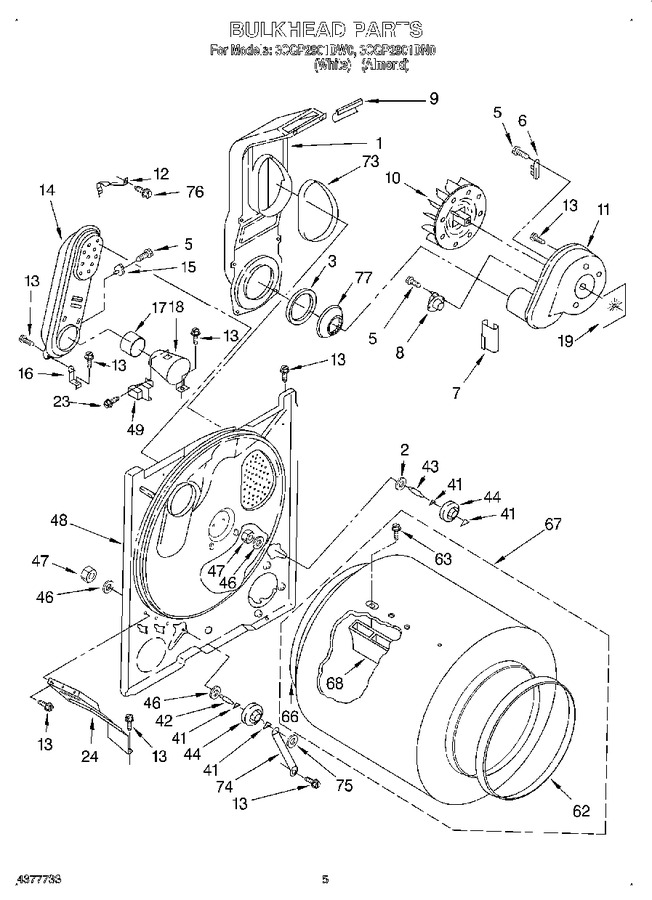

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	279505		Lint Chute, Assembly   (Replaces: 694283)				$ 302.61
2	WP3388703		Washer-support   (Replaces: 3388703)				$ 7.47
3	W11415783		Seal, Lint Chute   (Replaces: 347139)			Immediately	$ 18.23
5	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 7.82
6	WP3392519		Fuse, Thermal   (Replaces: 3392519)			Immediately	$ 24.95
7	686889		Pad, Blower Housing   (Replaces: 3392247)		Appelez-nous	-
8	WP3387137		Thermostat, Internal Bias   (Replaces: 3387137)				$ 136.38
9	686770		Support Protector		Appelez-nous	-
10	WP694089		Wheel, Blower   (Replaces: 694089)			Immediately	$ 37.66
11	WP8577230		Housing, Blower   (Replaces: 3405016)				$ 177.95
12	279771		Clip   (Replaces: 3398161)				$ 14.33
13	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
14	279900		Box, Heater   (Replaces: 685458)				$ 344.36
15	W11050897		Thermostat, High-limit 205~f (96~c)   (Replaces: 3403140)			Immediately	$ 15.30
16	337445		Support, Heater Box (2)		Appelez-nous	-
17	279900		Collar, Funnel   (Replaces: 337450)				$ 344.36
18	279900		Funnel, Burner   (Replaces: 347389)				$ 344.36
19	3392123		Seal, Blower		Appelez-nous	-
23	WP3390631		Screw, Sensor To Funnel   (Replaces: 339554)				$ 7.82
24	W11398682		Bracket, Bulkhead   (Replaces: 3406022)				$ 56.08
41	WPW10512946		Ring, Tri   (Replaces: 690997)			Immediately	$ 8.80
42	WPW10359270		Shaft, L.h.   (Replaces: 3399506)			Immediately	$ 72.71
43	WPW10359269		Shaft, R.h.   (Replaces: 3399507)			Immediately	$ 47.30
44	349241T		Roller, Support   (Replaces: 3397588)			Immediately	$ 29.53
46	WP348197		Washer, Support   (Replaces: 348197)				$ 7.19
47	WP3359452		Nut, 3/8-16   (Replaces: 3359452)			Immediately	$ 7.19
48	3397264		Bulkhead		Appelez-nous	-
49	WP338906		Sensor, Radiant   (Replaces: 338906)			Immediately	$ 51.91
62	WP3394508		Bearing, Ring   (Replaces: 3394508)				$ 125.58
63	WPW10109200		Screw, 11-16 X 7/8   (Replaces: 97787)			Immediately	$ 8.00
66	239087		Seal, Rear   (Replaces: 337449)			Immediately	$ 62.78
67	3396775		Drum Assembly   (Replaces: 695584)				$ 336.22
68	WP342847		Baffle, Drum   (Replaces: 342847)				$ 146.98
73	WP339956		Seal   (Replaces: 339956)			Immediately	$ 8.63
74	348945		Bracket, Support Shaft		Appelez-nous	-
75	WP90296		Clip   (Replaces: 90296)				$ 7.85
76	WP489463		Screw, 8-18 X 3/4   (Replaces: 3400800)				$ 7.82
77	W11233063		Shield, Exhaust   (Replaces: 696302)				$ 22.29
	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 60.28
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
	261888		New Avocado		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
	350956		Paint, Spray 13 Oz. (almond)				$ 51.44
	LIT3401731		Label, Wiring Diagram		Appelez-nous	-
	LIT3395317		Instructions, Installation		Appelez-nous	-
	LIT348772		Instructions, Multi-venting		Appelez-nous	-
	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	10875		Wire (16 Ga. 80 C Blue)			Immediately	$ 20.64
	261891		Golden Harvest (uncut)		Appelez-nous	-
	261889		New Avocado (uncut)		Appelez-nous	-
	978883		Almond (uncut)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
	261890		Golden Harvest		Appelez-nous	-
