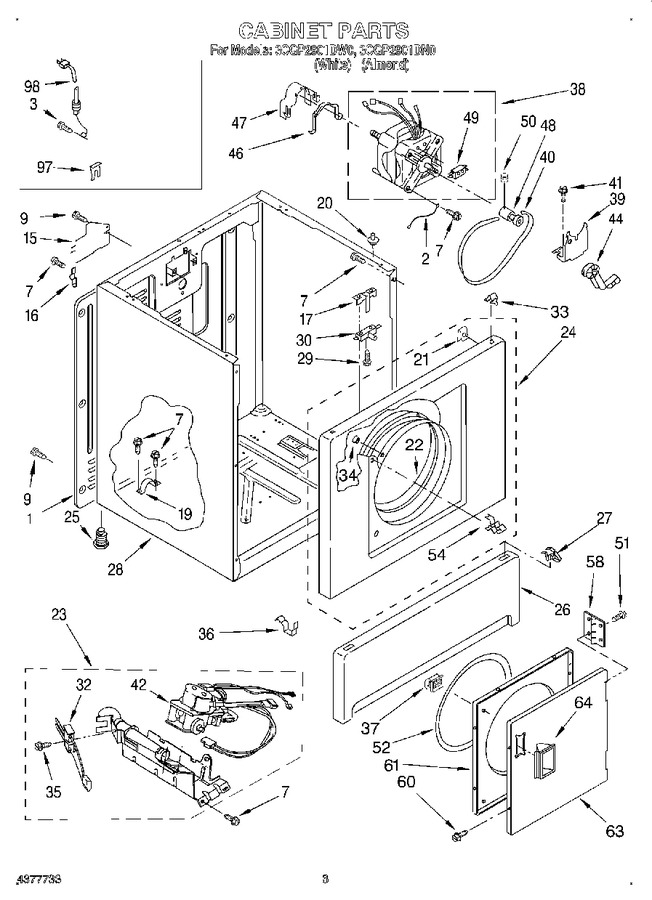

02 - Cabinet


03 - Bulkhead, Lit/optional


04 - 3401772 Burner Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3396807		Panel, Rear		Appelez-nous	-
2	690236		Wire, Ground (motor)		Appelez-nous	-
3	W10850756		Screw, Ground   (Replaces: 697776)				$ 7.76
7	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
9	WP693995		Screw, Hex Washer Head   (Replaces: 693995)			Immediately	$ 7.19
15	W11539855		Cover, Block   (Replaces: 3396795)			Immediately	$ 599.76
16	WP8066217		Hinge, Top (2)   (Replaces: 238088)				$ 7.82
17	WP691581		Lever, Door Switch   (Replaces: 691581)			Immediately	$ 8.09
19	341029		Clamp, Pipe (rear)		Appelez-nous	-
20	98669		Locator, Top (2)				$ 12.03
21	WP98234		Clip, Ground (2)   (Replaces: 98234)			Immediately	$ 11.39
22	279264		Seal & Bearing Assembly   (Replaces: 349462)			Immediately	$ 74.52
23	3401772		Burner Assembly (50 Hz.)		Appelez-nous	-
24	693203		Front Panel Assembly (almond)		Appelez-nous	-
24	693202		Front Panel Assembly (white)		Appelez-nous	-
25	49621		Foot, Plastic   (Replaces: 3392100)			Immediately	$ 8.55
25	49621		Foot - Optional (extended Length Package Of 2 ) (not Included)   (Replaces: 279810)			Immediately	$ 8.55
26	697096		Panel, Toe (almond)		Appelez-nous	-
26	697095		Panel, Toe (white)		Appelez-nous	-
27	WP3388229		Clip, Toe Panel (2)   (Replaces: 3388229)			Immediately	$ 8.45
28	3399580		Cabinet Assembly (includes Illus. Nos. 1, 15, 25, & 39) (white)		Appelez-nous	-
28	3399581		Cabinet Assembly (includes Illus. Nos. 1, 15, 25, & 39) (almond)		Appelez-nous	-
29	WP98129		Screw, 6-20 X 7/8 (2)   (Replaces: 98129)				$ 7.56
30	W10820036		Switch, Door   (Replaces: 347207)			Immediately	$ 30.50
32	279311		Ignitor   (Replaces: 686590)			Immediately	$ 78.90
33	WP18776		Lock, Front Top (2)   (Replaces: 18776)			Immediately	$ 12.68
33	WP18776		Lock, Front Top   (Replaces: 353145)			Immediately	$ 12.68
34	279220		Clip, Felt Pad (2)   (Replaces: 685203)				$ 20.65
35	WPW10366705		Screw & Washer   (Replaces: 3393909)				$ 7.50
36	WP297092		Clip, Hinge (2)   (Replaces: 297092)			Immediately	$ 8.24
37	WP3389441		Catch, Door Assembly   (Replaces: 3389441)				$ 6.20
38	W11618508		Motor Assembly 50 Hz.   (Replaces: 685815)				$ 348.11
39	WP348780		Base, Motor   (Replaces: 348780)			Immediately	$ 121.57
40	341241		Belt, Drive   (Replaces: 660997)			Immediately	$ 18.15
41	3400500		Bolt, 5/16-18 X 3/4			Immediately	$ 13.37
42	WP8281918		Valve, Gas (complete) 50 Hz.   (Replaces: 3401779)				$ 230.81
44	WP691366		Idler & Pulley   (Replaces: 691366)			Immediately	$ 22.47
46	WP660658		(alt.)   (Replaces: 343481)				$ 7.83
46	WP660658		(alt.)   (Replaces: 685441)				$ 7.83
46	WP660658		Clamp, Motor   (Replaces: 660658)				$ 7.83
47	WP3404162		Clamp, Motor   (Replaces: 3404162)			Immediately	$ 7.82
48	W11618508		Pulley, 50 Hz.   (Replaces: 685064)				$ 348.11
49	279827		Switch, Motor Start   (Replaces: 3388235)			Immediately	$ 191.95
50	690046		Screw, Set		Appelez-nous	-
51	WP694091		Screw, Hinge (6)   (Replaces: 694091)				$ 7.19
52	W11613302		Seal, Door   (Replaces: 3390734)				$ 53.63
54	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.89
58	WP348023		Hinge & Pin Assembly (2)   (Replaces: 348023)				$ 8.42
60	WP694091		Screw, Door (8)   (Replaces: 694091)				$ 7.19
61	280077		Door, Rear   (Replaces: 695656)				$ 197.58
63	WP348205		Door, Front (white)   (Replaces: 348205)			Immediately	$ 147.39
63	689314		Door, Front (almond)		Appelez-nous	-
64	689308		Handle, Door (almond)				$ 5.70
64	WP686711		Handle, Door (white)   (Replaces: 686711)			Immediately	$ 7.95
97	W11712577		Clip, Strain Relief   (Replaces: 694415)			Immediately	$ 7.40
98	3387258		Cord, Power		Appelez-nous	-
