SELECT A DIAGRAM

01 - Top And Console


02 - Cabinet


03 - Bulkhead, Lit/optional

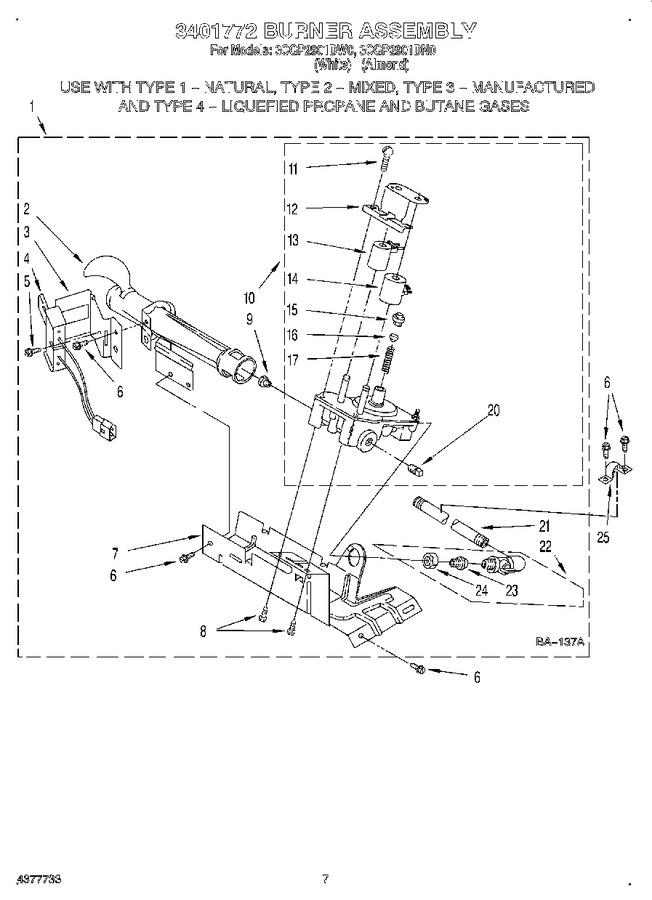

04 - 3401772 Burner Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3401772		Burner Assembly 50 Hz. (type 1, 2 & 3) (white Rodgers)		Appelez-nous	-
2	WP693140		Tube, Burner   (Replaces: 688617)				$ 179.88
3	WP694298		Bracket, Ignitor   (Replaces: 694298)				$ 25.92
4	279311		Ignitor   (Replaces: 686590)			Immediately	$ 78.90
5	WPW10366705		Screw & Washer (8-32 X 5/8)   (Replaces: 3393909)				$ 7.50
6	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
7	693986		Base, Burner		Appelez-nous	-
8	WP693995		Screw, 8-18 X 3/8 (2)   (Replaces: 3387057)			Immediately	$ 7.19
9	15775		Orifice, Burner (type 2)		Appelez-nous	-
9	WP234868		Orifice, Burner (type 4 (propane))   (Replaces: 234868)				$ 34.85
9	WP229742		Orifice, Burner (type 4 (butane))   (Replaces: 229742)				$ 34.85
9	15419		Orifice, Burner (type 3)		Appelez-nous	-
9	234660		Orifice, Burner (type 1)				$ 4.91
10	WP8281918		Valve, 50 Hz.   (Replaces: 3401779)				$ 230.81
11	694421		Screw, Bracket Mounting (8-32 X 1/2) (2)		Appelez-nous	-
12	694538		Bracket, Coil				$ 72.05
13	WP307930		Coil, 50 Hz. (2 Terminal) (main)   (Replaces: 695297)				$ 105.71
14	WPY307931		Coil, 50 Hz. Split (3 Terminal) (pilot Position)   (Replaces: 695298)				$ 115.68
15	WP694424		Leak Limiter   (Replaces: 694424)				$ 34.57
16	WP694423		Screw, Regulator Adjustment   (Replaces: 694423)				$ 6.95
17	WP694422		Spring, Regulator   (Replaces: 694422)				$ 24.27
20	W10295523		Plug, Pipe   (Replaces: 239822)		Appelez-nous	-
21	233273		Pipe, Gas Supply		Appelez-nous	-
22	345062		Valve & Union, Shut-off		Appelez-nous	-
23	3393767		Pipe, Tail				$ 137.74
24	233076		Nut, Compression				$ 43.19
25	341029		Clamp, Pipe		Appelez-nous	-
25	695237		Conversion Kit (type 1, 2 & 3) To Type (4) L.p.g.				$ 110.65

    View Diagram in Separate Window       Print Part List
