Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 67004185 Insulation, Tubing 10 Appelez-nous -
2 67004186 Tube, Plastic 10 Appelez-nous -
3 W11291138 Switch, Ref Light   (Replaces: 12466104) 10 In-Stock Immediately $ 36.67

4 W11396033 Switch, Light   (Replaces: 12466103) 10 In-Stock Immediately $ 37.30

5 12634801 Grille, Return Air 10 Appelez-nous -
6 WP2169142 Fan, Evaporator   (Replaces: 12217201) 10 In-Stock Immediately $ 43.41

7 67004253 Shroud, Evap 10 Appelez-nous -
8 67001508 Gasket 10 Appelez-nous -
9 WP67002780 Grommet, Fan Motor   (Replaces: 67002780) 10 Special Order $ 7.81

10 WPW10128551 Motor, Evap Fan   (Replaces: 67003636) 10 In-Stock Immediately $ 78.75

11 WP67005633 Clip   (Replaces: 67003083) 10 Special Order $ 7.65


    View Diagram in Separate Window     Print Icon   Print Part List

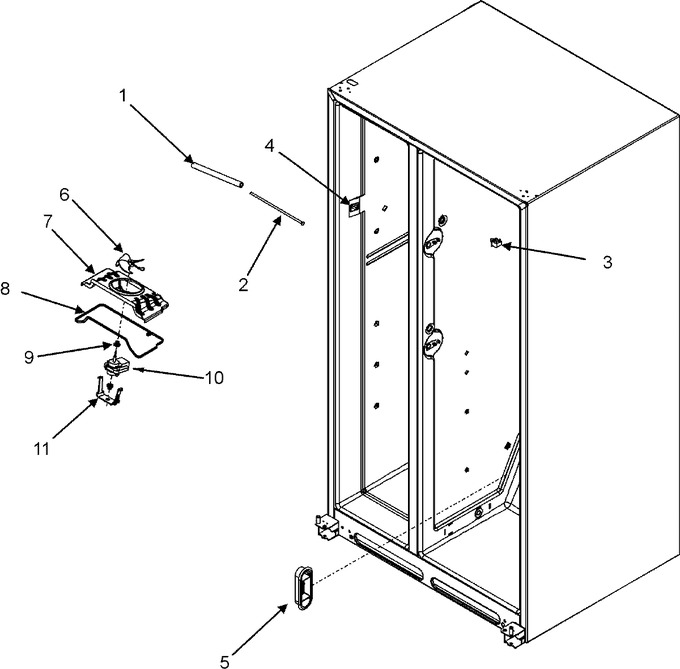

Diagram for CS26G3W
