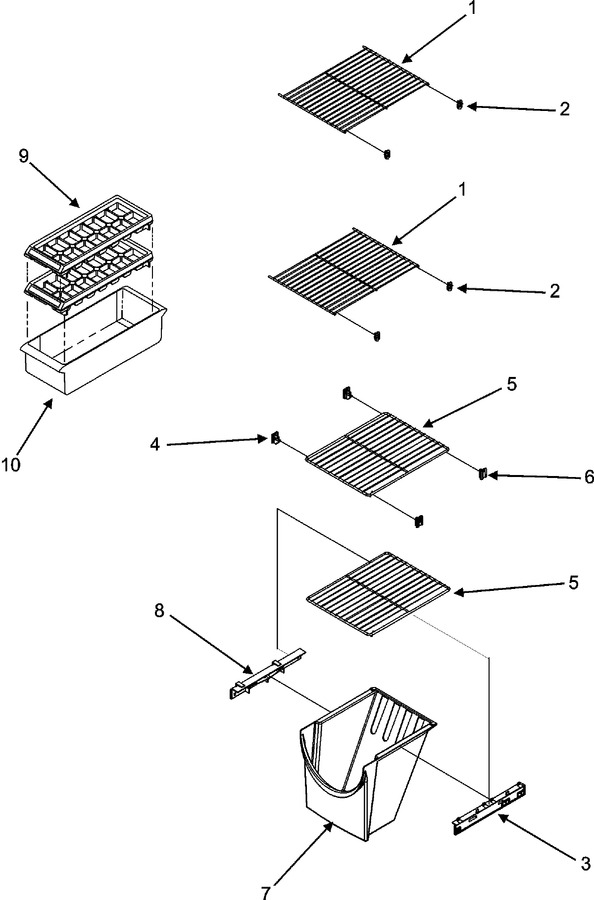

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67004354		Shelf, Upr Frz.	10	Appelez-nous	-
2	C8973801		Support, Frz Shelf	10			$ 8.35
3	67004356		Rail, Bin (rt)	10	Appelez-nous	-
4	12015002		Support, Shelf (lt)	10			$ 7.38
5	67004690		Shelf, Lwr Frz.	10	Appelez-nous	-
6	WP10941102		Support, Shelf (rt)	10			$ 11.81
7	12596501		Bin, Fz	10	Appelez-nous	-
8	67004355		Rail, Bin (lt)	10	Appelez-nous	-
9	WP841180A		Tray, Ice Cube   (Replaces: 67001747)	10		Immediately	$ 47.84
10	10423131		Bin, Utility	10			$ 31.13

    View Diagram in Separate Window       Print Part List
