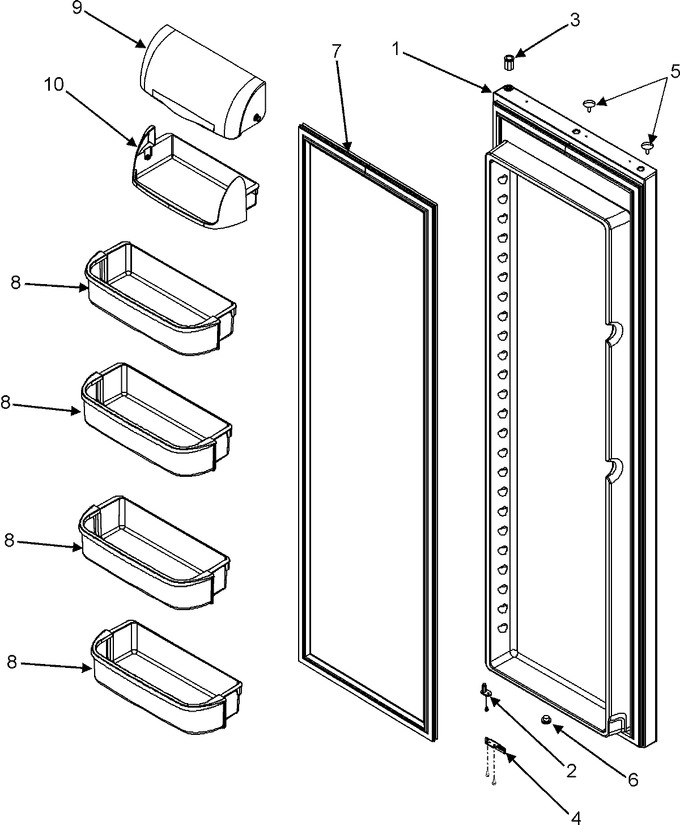

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67004616		Door Assy., Ref. Foam (wht)	10	Appelez-nous	-
2	R0181181		Closure, Door (blk)   (Replaces: 12113204)	10		Immediately	$ 7.55
2	WP8281227		Screw, Tc   (Replaces: M0220432)	10			$ 10.96
3	10961002		Bushing, Door (blk)	10	Appelez-nous	-
4	WP98165		Screw, Sm   (Replaces: M0211018)	10			$ 8.57
4	12636401W		Stop, Door (wht)	10	Appelez-nous	-
5	M0311605		Plug, Button (wht)	10	Appelez-nous	-
6	A3080001		Plug, Button (blk)	10	Appelez-nous	-
7	67003966		Gasket, Ref. Door (wht)	10	Appelez-nous	-
8	67004110		Bucket-36``ref Gal	10			$ 33.75
9	67001325		Door, Dairy	10	Appelez-nous	-
10	67002304		Tray, Dairy	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
