SELECT A DIAGRAM

01 - Cabinet Back


02 - Compressor


03 - Controls


04 - Crisper Assembly


05 - Evap Fan Assy.


06 - Evaporator/rollers


07 - Freezer Compartment


08 - Freezer Door


09 - Freezer Shelves


10 - Handles


11 - Hinges


12 - Refrigerator Door


13 - Refrigerator Shelves


14 - Supplemental Information


15 - Wiring Information

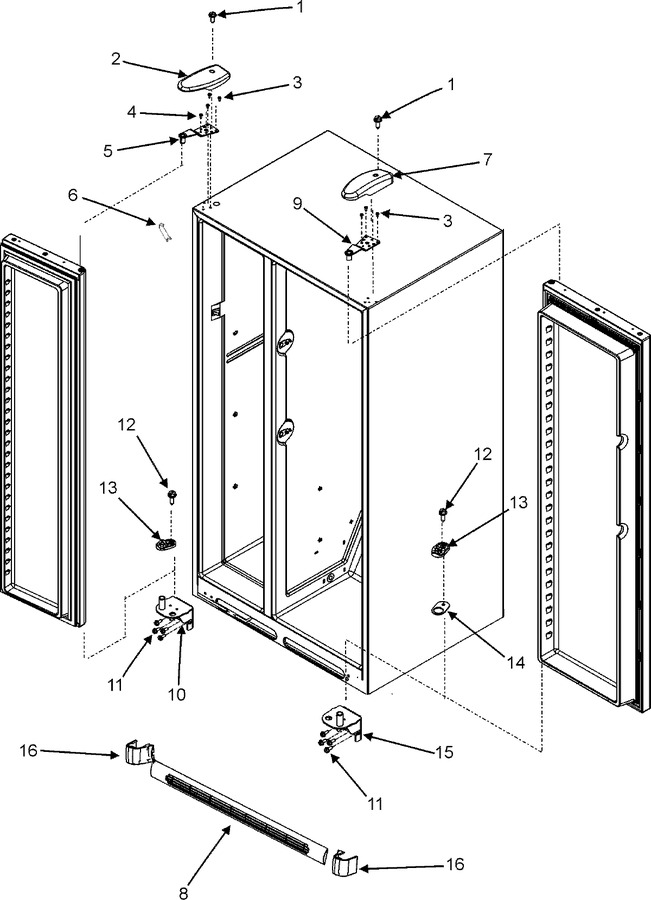

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP8281196		Screw, Mach   (Replaces: M0202336)	10		Immediately	$ 7.19
2	67004029		Cover, Top Hinge (lt-wht)	10	Appelez-nous	-
3	R9800670		Screw, Tf   (Replaces: M0238731)	10			$ 9.38
4	W11214483		Screw, Mach   (Replaces: M0202321)	10			$ 14.02
5	67004126		Hinge, Top (lt-blk)	10	Appelez-nous	-
6	67003484		Cover, Corner (wht)	10			$ 20.40
7	67004030		Cover, Top Hinge (rt-wht)	10	Appelez-nous	-
8	12627302		Clip, Toe Grille	10			$ 5.84
8	67002223		Toe Grille Assy (wht)	10	Appelez-nous	-
9	67004083		Hinge, Top (rt-blk)	10	Appelez-nous	-
10	12636901ED		Hinge, Bottom (lt-blk)	10			$ 34.72
11	67003858		Screw, Bottom Hinge	10	Appelez-nous	-
12	W11227370		Screw, Tc   (Replaces: M0220431)	10		Immediately	$ 14.20
13	R0181181		Closure, Door (blk)   (Replaces: 12431302)	10		Immediately	$ 7.19
14	WP67005716		Shim, Dr Closure (blk)   (Replaces: 10361806)	10			$ 7.46
15	12636902ED		Hinge, Bottom (rt-blk)	10	Appelez-nous	-
16	12630301W		Cover, Lwr Hinge (wht)	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
