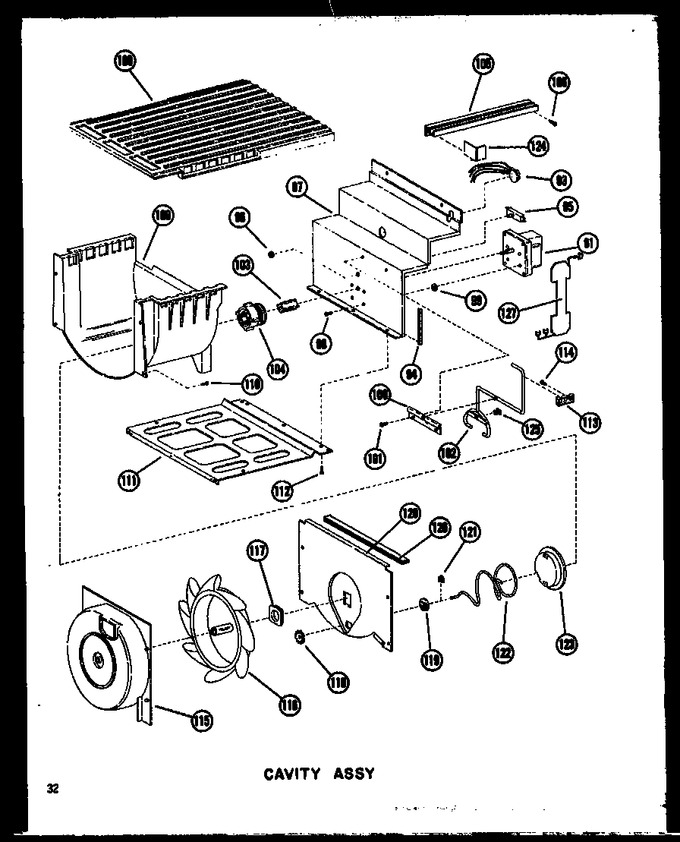

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 91 | C8737001 | Motor |
|
- | |||||
| 93 | C8726901 | Wiring Harness |
|
- | |||||
| 94 | A3030301 | Gasket (inch) |
|
- | |||||
| 95 | M0340703 | Switch-sealed |
|
- | |||||
| 96 | M0281404 | Nut, Switch |
|
- | |||||
| 97 | D7181902 | Rear Chassis |
|
- | |||||
| 98 | M0202528 | Screw |
|
- | |||||
| 99 | M0272504 | Washer |
|
- | |||||
| 100 | B5697601 | Holder-shutoff Arm |
|
- | |||||
| 101 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 8.25 | ||||
| 102 | C3694001 | Arm, Shut Off |
|
- | |||||
| 103 | B5697701 | Spline-drive |
|
- | |||||
| 104 | C3693601 | Drive Link |
|
- | |||||
| 105 | B5695901 | Rail |
|
- | |||||
| 106 | M0253916 | Screw |
|
- | |||||
| 108 | D7182702 | Shelf, Bottom, Upper Fz |
|
- | |||||
| 109 | D7180302 | Ice Bucket A |
|
- | |||||
| 110 | M0253714 | Screw |
|
- | |||||
| 111 | D7181701 | Bottom-chassis |
|
- | |||||
| 112 | 67006425 | Screw (Replaces: M0230917) |
|
Immediately | $ 7.30 | ||||
| 113 | C3694201 | Detent-shut Off Arm |
|
- | |||||
| 114 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 115 | D7192601 | Cover, Lift Wheel |
|
- | |||||
| 116 | D7192701 | Wheel-lift A |
|
- | |||||
| 117 | B5698401 | Bushing A |
|
- | |||||
| 118 | B5700401 | Gear Pinion A |
|
- | |||||
| 119 | B5700501 | Bushing A |
|
- | |||||
| 120 | D7182001 | Partition Panel A |
|
- | |||||
| 121 | M0274601 | Ring-retaining A |
|
- | |||||
| 122 | C3693901 | Helix |
|
- | |||||
| 123 | C3692901 | End Cap-helix A |
|
- | |||||
| 124 | B5714301 | Cover-wiring |
|
- | |||||
| 125 | A0288701 | Grommet |
|
- | |||||
| 126 | A3221801 | Strip A |
|
- | |||||
| 127 | C8741101 | Heater, Motor |
|
- |
