Diagram # Part Number Description Series Availability Ships Price Add to Cart
205 D3952401 Breaker Frame Appelez-nous -
206 D3951709 Breaker Frame Appelez-nous -
206 D7180001 Breaker Frame, Fz Side Appelez-nous -
207 D3953102 Breaker Frame, Fz Top Appelez-nous -
208 D7180101 Breaker Frame Appelez-nous -
208 D3952303 Breaker Frame Appelez-nous -
209 D3952503 Breaker Frame Appelez-nous -
210 D3952601 Breaker Frame Appelez-nous -
211 C8733701 Heater Appelez-nous -
212 M0117301 Clip, Grille Appelez-nous -
213 B5645802 Barrier Appelez-nous -
213 B5645801 Barrier Appelez-nous -
214 D7070201 Grille, Bottom Appelez-nous -
215 18814 Switch, Light   (Replaces: C3680305) Special Order $ 39.44

216 A3120801 Key Appelez-nous -
217 B0594614 Mullion Cap-avocado Appelez-nous -
217 B0594613 Mullion Cap-copper Appelez-nous -
217 B0594612 Mullion Vert.white) Appelez-nous -
217 B0594615 Mullion Cap-gold Appelez-nous -
218 M0115501 Clip Appelez-nous -
218 M0113401 Clip Appelez-nous -
219 C3628304 Drier, Center Mullion, 115 V., Appelez-nous -
220 D7009801 Knob Appelez-nous -
221 C8716301 Thin Plate-escut Appelez-nous -
222 D7204302 Escutcheon Appelez-nous -
223 M0230926 Screw Appelez-nous -
224 C8702602 Bracket, Control Appelez-nous -
225 A3030335 Gasket-per Ft Appelez-nous -
226 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

227 WP90767 Screw, Sm   (Replaces: M0211016) In-Stock Immediately $ 8.25

228 C3615007 Cold Control K Appelez-nous -
230 M0341201 Switch Appelez-nous -
233 A3113501 Gasket-damper Appelez-nous -
234 C3643102 Damper Control Kit Appelez-nous -
235 WP489464 Screw   (Replaces: M0211217) In-Stock Immediately $ 8.38

236 A3113601 Gasket Control Appelez-nous -
237 D7126703 Escutcheon Appelez-nous -
238 C3624901 Thin Plate Appelez-nous -
239 D7009802 Knob Appelez-nous -
240 M0305301 Diode Appelez-nous -
241 18805 Switch   (Replaces: C3680306) Special Order $ 21.59

242 C3690901 Breaker Frame Appelez-nous -
243 C3690903 Breaker Frame Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

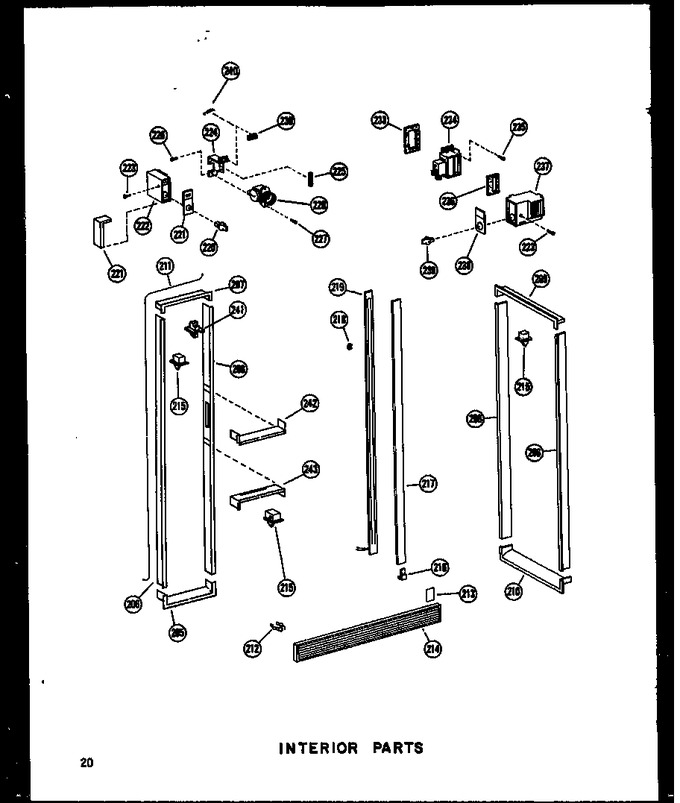

Diagram for CSDI25A-A (BOM: P6035017W A)
