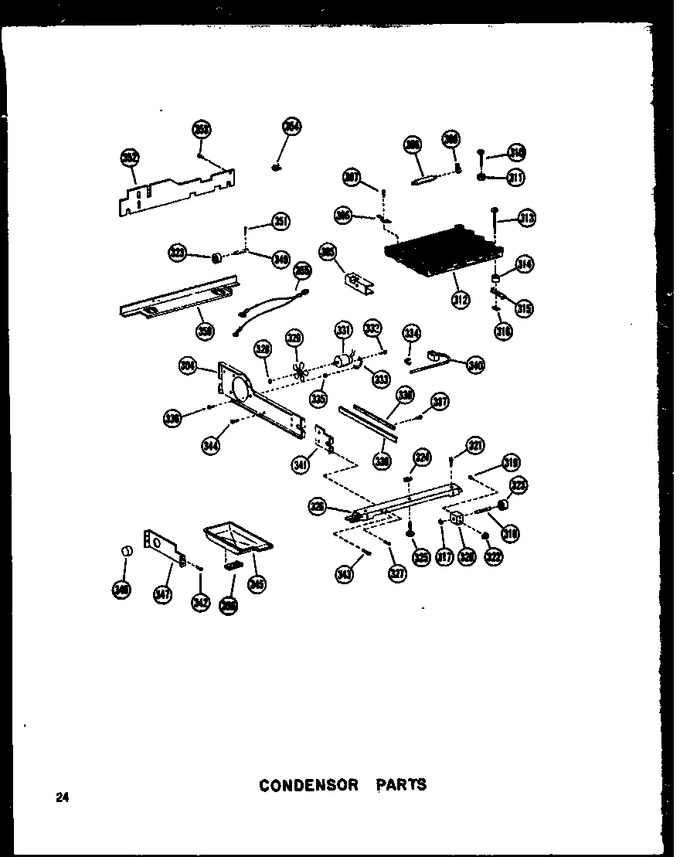

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 304 | C3617602 | Fan Shroud |
|
- | |||||
| 305 | B0544101 | Spacer |
|
- | |||||
| 306 | A3054501 | Clip-cond |
|
- | |||||
| 307 | R9800670 | Kit, Screw (Replaces: M0211030) |
|
$ 10.58 | |||||
| 308 | WPB2150504 | Drier (Replaces: B2150501) |
|
$ 136.98 | |||||
| 309 | M0104002 | Clamp-drier |
|
- | |||||
| 310 | M0257037 | Sems Fastner |
|
- | |||||
| 311 | A3013906 | Spacer |
|
- | |||||
| 312 | D7196401 | Condenser Assy Pnt |
|
- | |||||
| 313 | M0257039 | Sems Fastner |
|
- | |||||
| 314 | A3013907 | Spacer |
|
- | |||||
| 315 | A3085401 | Bracket, Support |
|
- | |||||
| 316 | M0286003 | Nut A |
|
- | |||||
| 317 | M0289401 | Fastener |
|
- | |||||
| 318 | M1210002 | Rivet |
|
- | |||||
| 319 | M0222240 | Roller Bracket Kit |
|
- | |||||
| 320 | A3125201 | Bracket K |
|
- | |||||
| 321 | M0267101 | Screw |
|
- | |||||
| 322 | M0283510 | Nut, Self Thread |
|
- | |||||
| 323 | M0520102 | Roller |
|
- | |||||
| 324 | A3122601 | Wing Nut |
|
- | |||||
| 325 | B1601601 | Foot-levelling |
|
- | |||||
| 326 | B5627602 | Front Rail |
|
- | |||||
| 327 | M0233844 | Screw, T F |
|
- | |||||
| 328 | WP486692 | Nut K (Replaces: M0286113) |
|
$ 8.43 | |||||
| 329 | B5742601 | Blade, Fan |
|
- | |||||
| 331 | 833697 | Motor, Fan (Replaces: C8736901) |
|
Immediately | $ 109.14 | ||||
| 332 | M0220101 | Screw |
|
- | |||||
| 333 | B0598701 | Bracket, Cond Motor |
|
- | |||||
| 334 | M0116401 | Clip |
|
- | |||||
| 335 | M0500107 | Grommet K |
|
- | |||||
| 336 | M0221332 | Screw, Shoulder |
|
- | |||||
| 337 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 338 | B0599701 | Retainer |
|
- | |||||
| 339 | B0599602 | Seal |
|
- | |||||
| 340 | C3607201 | Drain Tube Assy |
|
- | |||||
| 341 | B5619801 | Extension |
|
- | |||||
| 342 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 343 | M0233643 | Screw |
|
- | |||||
| 344 | M0241118 | Screw-sm |
|
- | |||||
| 345 | D7001001 | Pan, Drain |
|
- | |||||
| 346 | M0218116 | Screw |
|
- | |||||
| 346 | D7004106 | Timer, Defrost |
|
- | |||||
| 347 | C3647902 | Timer Bracket |
|
- | |||||
| 349 | M1210001 | Pivot Pin K |
|
- | |||||
| 350 | C3611302 | Rail Rear |
|
- | |||||
| 351 | M1200001 | Cotter Pin K |
|
- | |||||
| 352 | C3655002 | Mc Back Assy |
|
- | |||||
| 353 | M0241118 | Screw-sm |
|
- | |||||
| 354 | M0110502 | Clip |
|
- | |||||
| 355 | A3147402 | Jumper Wire |
|
- | |||||
| 356 | B5691701 | Pad A |
|
- |
