Diagram # Part Number Description Series Availability Ships Price Add to Cart
355 A3080001 Plug, Button (blk) Appelez-nous -
355 A3080002 Plug, Button (wht) Appelez-nous -
356 B5630510 Fill Tube Assy Appelez-nous -
357 A3091301 Plug Button Appelez-nous -
359 M0253916 Screw Appelez-nous -
360 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

361 A3127405 Ext-fill Tube Appelez-nous -
362 D7208410 Kit, Icemaker Appelez-nous -
363 M0500702 O Ring K Appelez-nous -
363 M0500701 O Ring Appelez-nous -
364 WPA3223101 Insert, Plastic Tube   (Replaces: A3223101) Special Order $ 8.21

365 A3224501 Brkt-ice Maker Appelez-nous -
366 WPB5705307 Tube, Plastic   (Replaces: A3101505) Special Order $ 13.05

367 M0580001 Grommet, Screw Appelez-nous -
368 WP90767 Screw, Sm   (Replaces: M0211016) In-Stock Immediately $ 8.25

369 M0102804 Clamp Appelez-nous -
370 A3084501 Coupling, Solenoid Valve And H Appelez-nous -
371 4318046 Water Valve Assy   (Replaces: D7208403) In-Stock Immediately $ 92.87

372 M0282201 Nut, Compression Appelez-nous -
372 M0282301 Nut, Sleeve Appelez-nous -
373 B5701401 Bracket-solenoid Appelez-nous -
374 M0251017 Screw Appelez-nous -
375 A3034801 Saddle Valve Appelez-nous -
380 C3667001 Compressor Ae1413a Appelez-nous -
381 C3688602 Support, Comp. Weld Appelez-nous -
384 A3026101 Grommet K Appelez-nous -
385 A3164301 Vinyl Sleeve Appelez-nous -
386 M0590101 Washer, Nylon K Appelez-nous -
386 M0270509 Washer Appelez-nous -
387 A3140801 Clip K Appelez-nous -
388 C3689101 Overload K Appelez-nous -
389 A3043601 Spring K Appelez-nous -
390 C3689201 Relay Appelez-nous -
391 B0551801 Terminal Cover Appelez-nous -
392 A3041801 Strap K Appelez-nous -
393 R0157154 Power Cord Appelez-nous -
394 A3245101 Strain Relief Appelez-nous -
394 A0319703 Strain Relief K Appelez-nous -
395 B5720302 Clip Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

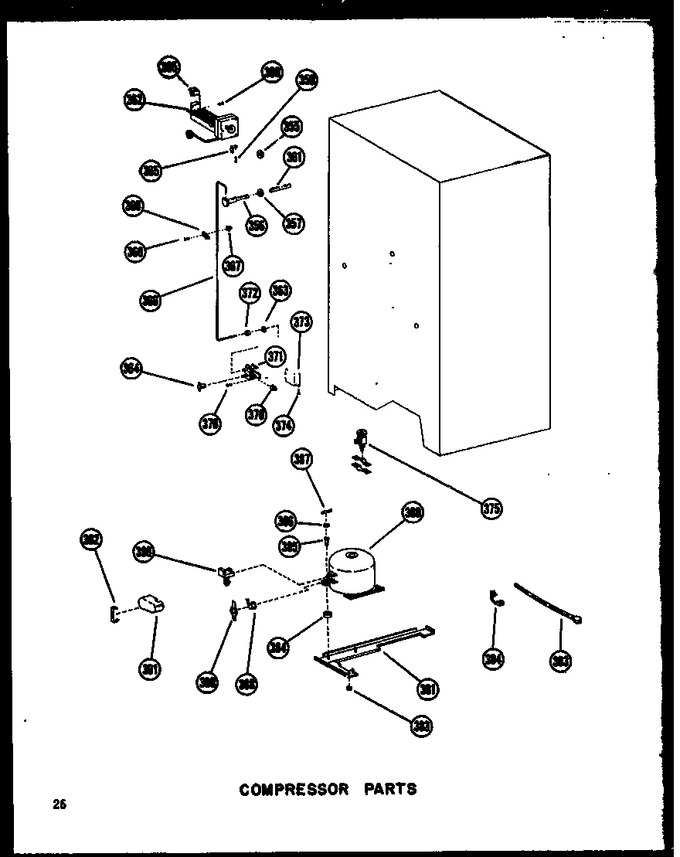

Diagram for CSDI25A-A (BOM: P6035017W A)
