SELECT A DIAGRAM

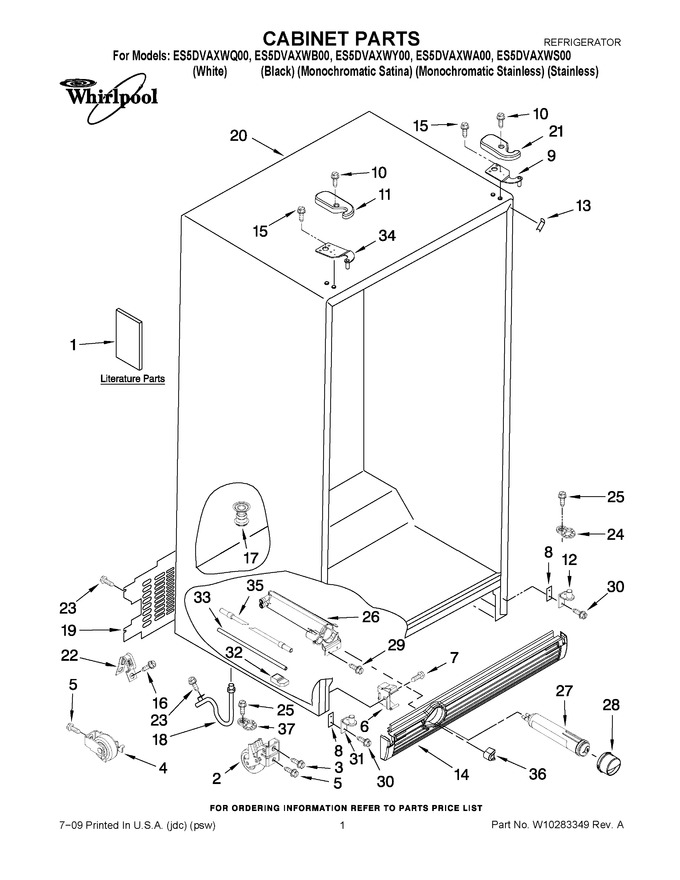

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Icemaker Parts


11 - Air Flow Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2220407		Modular Icemaker Service Sheet		Appelez-nous	-
1	W10206334		Instruction Sheet, Door Removal		Appelez-nous	-
1	W10253633		Energy Guide		Appelez-nous	-
1	W10193166		Owner`s Manual		Appelez-nous	-
1	W10238216		Service & Wiring Sheet		Appelez-nous	-
2	2174748		Front Roller (2)		Appelez-nous	-
3	W10850698		Screw   (Replaces: 3400517)				$ 11.88
4	WPW10250570		Roller (rear) (2)   (Replaces: 2196236)				$ 40.17
5	WP489427		Screw   (Replaces: 489427)				$ 7.47
6	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 7.72
7	WP489128		Screw   (Replaces: 488500)				$ 10.88
8	WP2181911		Shim   (Replaces: 2156056)				$ 33.21
9	WP2203771		Hinge Top (rc)   (Replaces: 2203771)				$ 98.22
10	WP8281227		Screw   (Replaces: 8281227)				$ 10.44
11	WP2203407W		Hinge Cover (fc) (white)   (Replaces: 2203407W)				$ 20.75
11	2203407AP		Hinge Cover, Fc (apollo Gray)		Appelez-nous	-
11	WP2203407B		Hinge Cover (fc) (black)   (Replaces: 2203407B)				$ 19.52
12	W10138965		Bottom Hinge (rc)				$ 89.44
13	W10143043		Filler, Wrapper (apollo Gray)		Appelez-nous	-
13	2304848		Filler, Wrapper (black)		Appelez-nous	-
13	2304846		Filler, Wrapper (white)		Appelez-nous	-
14	W10188055		Grille (black)		Appelez-nous	-
14	W10188054		Grille (white)				$ 70.31
14	W10188057		Grille (midnight Grey)		Appelez-nous	-
15	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
16	WP489497		Screw   (Replaces: W10142235)			Immediately	$ 29.09
17	W11566763		Drain Fitting   (Replaces: 2304888)			Immediately	$ 50.90
18	W11512417		Extension Tube   (Replaces: W10153550)				$ 34.79
19	WP2188755		Cover, Unit   (Replaces: 2188739)				$ 135.91
20	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
21	WP2203408B		Hinge Cover (rc) (black)   (Replaces: 2203408B)				$ 18.63
21	WP2203408W		Hinge Cover (rc) (white)   (Replaces: 2203408W)				$ 20.97
21	2203408AP		Hinge Cover, Rc (apollo Gray)				$ 94.47
22	549193		Clamp-service Cord				$ 13.39
23	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
24	WPW10329686		Door Closer, Rc   (Replaces: 2155311)			Immediately	$ 5.43
25	WP489483		Screw   (Replaces: 489483)				$ 10.87
26	WPW10121138		Housing, Water Filter   (Replaces: W10121138)			Immediately	$ 112.91
27	EDR3RXD1B		Water Filter   (Replaces: 9030)			Immediately	$ 49.99
28	WP2260518B		Cap, Water Filter (black)   (Replaces: 2260502B)			Immediately	$ 28.26
28	WP2260518MG		Cap, Water Filter (midnight Grey)   (Replaces: 2260502MG)				$ 56.03
28	WP2260518W		Cap, Water Filter (white)   (Replaces: 2260502W)			Immediately	$ 31.90
29	WP489500		Screw   (Replaces: 489500)				$ 7.78
30	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 7.83
31	2303141		Bottom Hinge (fc)				$ 248.57
32	2260519		Block, Housing Support		Appelez-nous	-
33	WPW10350006		Tube, Filter Outlet   (Replaces: 2255012)				$ 115.54
34	WP2203770		Hinge Top (fc)   (Replaces: 2203770)				$ 95.52
35	W10212512		Tube, Filter Inlet		Appelez-nous	-
36	2260503W		Button, Water Filter (white)			Immediately	$ 34.16
36	WP2260503B		Button, Water Filter (black)   (Replaces: 2260503B)				$ 72.78
36	2260503MG		Button, Water Filter (midnight Grey)				$ 27.01
37	W11778262		Door Closer, Fc   (Replaces: 2223751)				$ 11.08

    View Diagram in Separate Window       Print Part List
