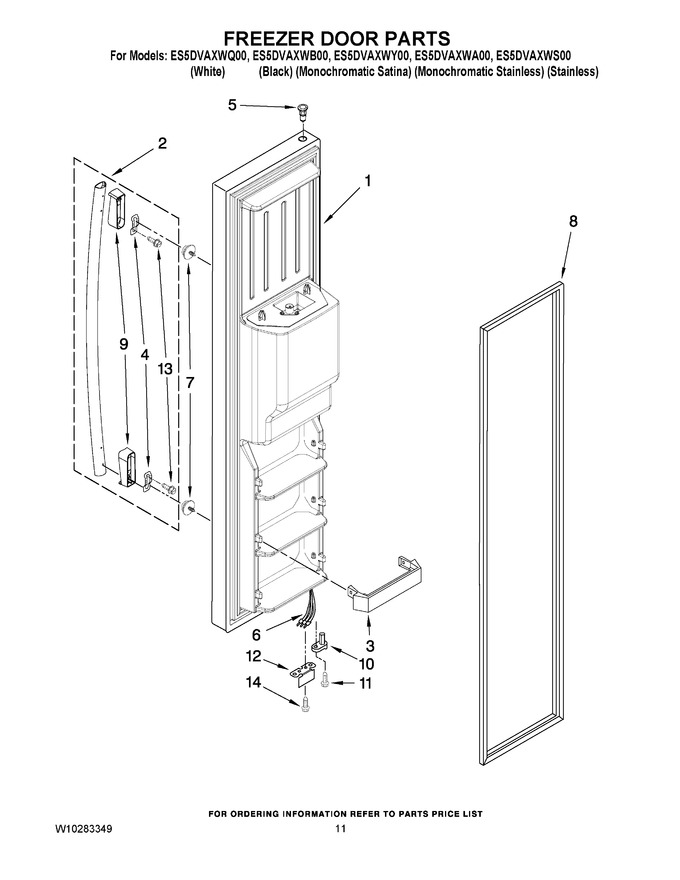

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10252723W		Freezer Door (includes No.8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	W10252723B		Freezer Door (includes No.8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	W10252723LG		Freezer Door (includes No.8 And Dispenser Front Parts) (mono Satina)		Appelez-nous	-
1	W10252723SS		Freezer Door (includes No.8 And Dispenser Front Parts) (monochromatic Stainless)		Appelez-nous	-
1	W10252723SB		Freezer Door (includes No.8 And Dispenser Front Parts) (stainless)		Appelez-nous	-
2	W10210942A		Handle, Assy (white)   (Replaces: W10127803)				$ 123.36
2	W10210942A		Handle, Assy (black)   (Replaces: W10127804)				$ 123.36
2	W10273556		Handle, Assy (stainless, All)   (Replaces: W10152865)				$ 280.81
3	WP2171157		Trivet (3)   (Replaces: 2171157K)				$ 60.67
4	WP2255411		Clip   (Replaces: 2255411)				$ 34.81
5	WP2182181		Thimble-top   (Replaces: 2200086)				$ 7.76
6	W10193330		Wire Assy, Door				$ 71.28
7	WPW10288153		Screw   (Replaces: W10129563)			Immediately	$ 8.69
8	W10136735		Door Gasket, Magnetic (apollo Grey)   (Replaces: 2326339)				$ 254.84
8	2159082		Door Gasket, Magnetic (black)   (Replaces: 2221314)				$ 316.66
8	2159074		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221303)				$ 310.19
9	W10127814		Handle, Endcap (black)		Appelez-nous	-
9	W10127813		Handle, Endcap (white)				$ 78.50
9	W10152864		Handle, Endcap (stainless, All)		Appelez-nous	-
10	2323535		Door Closer, Upper Cam				$ 33.97
11	WP489483		Screw   (Replaces: 489420)				$ 10.87
12	W10175736		Bracket, Door Stop (black)		Appelez-nous	-
12	W10175735		Bracket, Door Stop (chrome)		Appelez-nous	-
13	W10267047		Screw   (Replaces: W10201588)				$ 12.83
14	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
