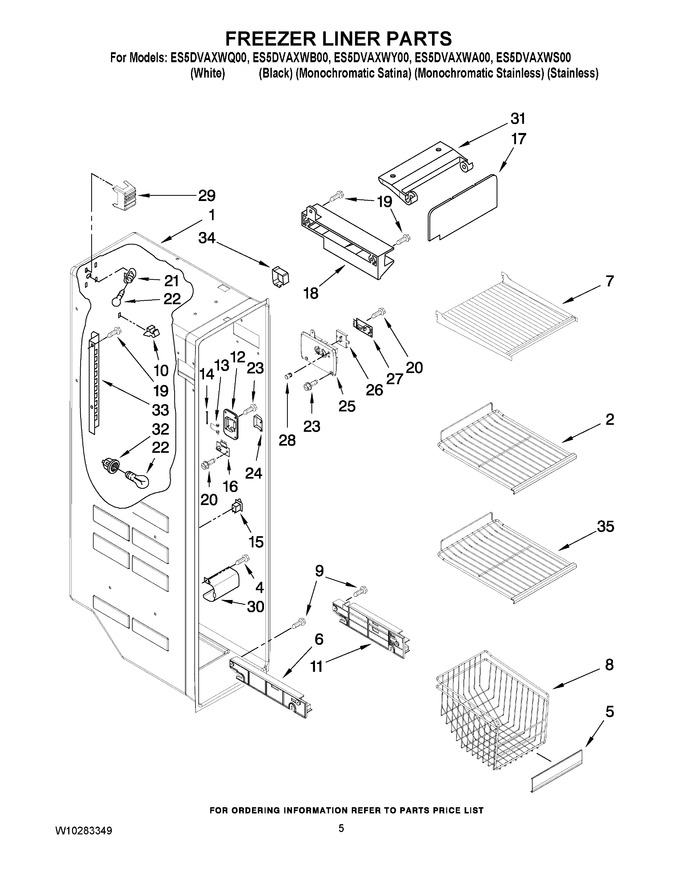

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not Aseviceable Part) |
|
- | |||||
| 2 | 2211746 | Shelf, Fc (2) |
|
- | |||||
| 4 | W10142289 | Screw (Replaces: 3400893) |
|
$ 9.15 | |||||
| 5 | WPW10307490 | Trim, Basket (Replaces: 2219982) |
|
Immediately | $ 23.11 | ||||
| 6 | 2301289 | Shelf Track (right Side) |
|
$ 86.80 | |||||
| 6 | 2301290 | Shelf Track (left Side) |
|
$ 134.88 | |||||
| 7 | 2205837K | Shelf (2) |
|
$ 42.67 | |||||
| 8 | WP2182971 | Basket, Sloped (Replaces: 2182971) |
|
$ 140.21 | |||||
| 9 | W10759522 | Screw (8) (Replaces: W10004810) |
|
$ 7.75 | |||||
| 10 | 2215823 | Clip, Air Duct (2) (Replaces: 842534) |
|
$ 10.42 | |||||
| 11 | 2301291 | Shelf Track, Dual (right Side) |
|
$ 154.30 | |||||
| 11 | 2301292 | Shelf Track, Dual (left Side) |
|
$ 174.94 | |||||
| 12 | WP2198587 | Cover, Emitter (Replaces: 2198587) |
|
$ 105.55 | |||||
| 13 | WP2198635 | Spring (Replaces: 2198635) |
|
$ 87.08 | |||||
| 14 | WP2198634 | Pin (Replaces: 2198634) |
|
$ 17.76 | |||||
| 15 | W11457217 | Switch, Rocker Arm (Replaces: 1115373) |
|
$ 38.18 | |||||
| 16 | W11629974 | P.c. Board Emitter (Replaces: W10193840) |
|
Immediately | $ 401.07 | ||||
| 17 | WP2255720 | Cover, Ice Maker (Replaces: 2255720) |
|
$ 74.82 | |||||
| 18 | 2212321 | Slide, Ice Maker Mounting |
|
$ 67.14 | |||||
| 19 | WP489478 | Screw (Replaces: W10001260) |
|
$ 7.75 | |||||
| 20 | 2006254 | Screw (Replaces: 489214) |
|
$ 13.13 | |||||
| 21 | 4387478 | Light Socket (Replaces: 2162085) |
|
Immediately | $ 110.16 | ||||
| 22 | W11679940 | Light Bulb (Replaces: W10194422) |
|
Immediately | $ 11.30 | ||||
| 23 | WPW10142283 | Screw (Replaces: 8281185) |
|
$ 9.84 | |||||
| 24 | WP2198633 | Flipper (Replaces: 2198633) |
|
Immediately | $ 48.27 | ||||
| 25 | W10173569 | Cover, Receiver |
|
$ 66.93 | |||||
| 26 | 2315398 | Slide, Ice Maker Shut Off |
|
$ 10.90 | |||||
| 27 | W11629974 | P.c. Board, Receiver (Replaces: W10193666) |
|
Immediately | $ 401.07 | ||||
| 28 | WP2198643 | Lens (Replaces: 2198643) |
|
$ 8.18 | |||||
| 29 | 2198589 | Light Shield |
|
- | |||||
| 30 | W11298978 | Light Lens (Replaces: 2212340) |
|
$ 93.88 | |||||
| 31 | WP2198641 | Bracket, Ice Maker Cover (Replaces: 2198641) |
|
$ 7.19 | |||||
| 32 | WPW10119935 | Socket (Replaces: 2155597) |
|
$ 101.10 | |||||
| 33 | 2198609 | Light Ladder, Left Side |
|
$ 42.40 | |||||
| 33 | 2198610 | Light Ladder, Right Side |
|
$ 63.20 | |||||
| 34 | 2303234 | Shield, Wiring |
|
- | |||||
| 35 | WPW10317556 | Shelf, Lower (Replaces: 2211742) |
|
$ 89.58 |
