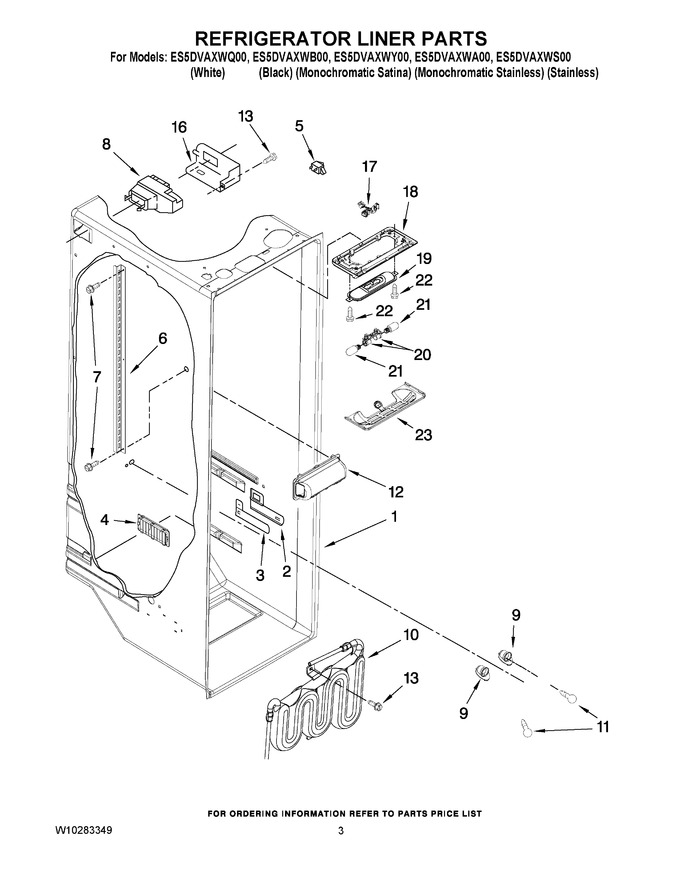

02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Icemaker Parts


11 - Air Flow Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	W10175967		Escutcheon, Meat Pan Control				$ 77.20
3	2182757		Slide Meat Pan Control				$ 75.15
4	2257741		Louver		Appelez-nous	-
5	W11384469		Switch, Rocker Arm   (Replaces: 1118894)			Immediately	$ 37.23
6	2319866		Shelf Ladder				$ 22.16
7	WP489478		Screw   (Replaces: W10001260)				$ 7.75
8	W10899382		Air Diffuser Assembly   (Replaces: W10128734)			Immediately	$ 191.85
9	4387478		Socket   (Replaces: 2162085)			Immediately	$ 110.16
10	WPW10276792		Reservoir   (Replaces: 2307107)				$ 137.57
11	W11679940		Light Bulb   (Replaces: W10194422)			Immediately	$ 11.30
12	W11239891		Shield Assy, Light   (Replaces: W10242623)				$ 96.69
13	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 7.83
16	W10128735		Cover, Air- Diffuser		Appelez-nous	-
17	2310527		Wire Assy - Rc Light		Appelez-nous	-
18	W10284481		Trim, Light Rc   (Replaces: 2326209)		Appelez-nous	-
19	2223680		Shield, Heat				$ 89.07
20	WPW10191429		Socket, Light   (Replaces: 2223857)				$ 8.38
21	WPA3073101		Bulb, Light   (Replaces: 2326255)			Immediately	$ 12.11
22	WP3400906		Screw   (Replaces: W10141632)				$ 7.84
23	2223506		Lens, Light				$ 47.17
