SELECT A DIAGRAM

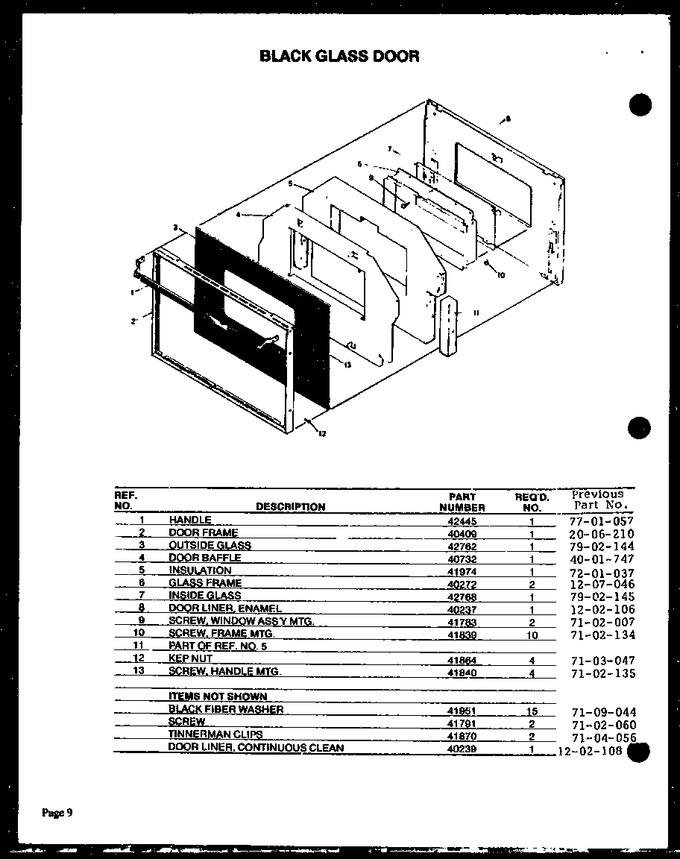

01 - Black Glass Door


02 - Cabinet Section


03 - Oven Door


04 - Page 1


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	42445		Retainer		Appelez-nous	-
2	0040409		Sub 42600, Door Frame		Appelez-nous	-
3	Y0042762		Dark Oven Dr Glass 30`` Th&mh		Appelez-nous	-
4	Y0040732		Door Baffle Wall Oven		Appelez-nous	-
5	Y0041974		Sub 41966 Insulation 2x20x65		Appelez-nous	-
6	Y0040272		Window Frame 30`` Th Dk Gl.		Appelez-nous	-
7	0042768		Window Assy T. H.		Appelez-nous	-
8	40237		Door Liner, Enamel				$ 22.64
9	Y0041783		Screw, No.10 X 3/8``		Appelez-nous	-
10	0041839		Black Screw 8-18x.500		Appelez-nous	-
12	WP488130		Sub 97886 Hex Nut Keds 8/32   (Replaces: Y0041864)				$ 6.59
13	0041840		Screw 8-32x.375 Dk Gl Dr Hdl		Appelez-nous	-
NI	0040239		Sub 40237y, Door Liner Gray		Appelez-nous	-
NI	Y0041870		Tinnerman		Appelez-nous	-
NI	0041951		Black Fiber Washer		Appelez-nous	-
NI	0041791		Metl Scrw 10ax3/4 Ph Pan Hd Bk		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
