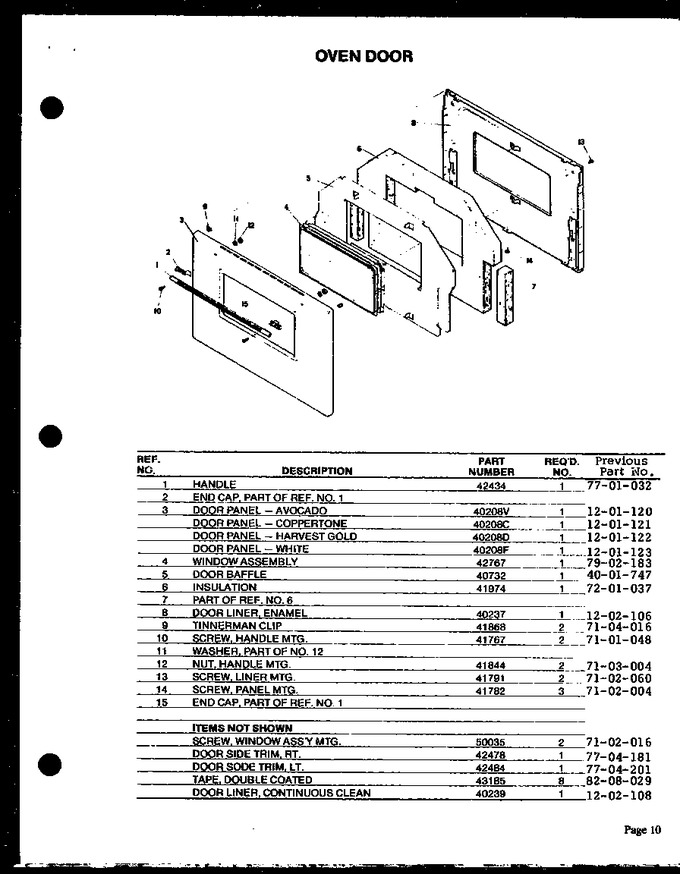

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0042434		Handle 2250 4500 9m No Su 7500		Appelez-nous	-
2	Y00000000		See Note End Cap		Appelez-nous	-
3	40208D		Door Panel - Harvest Gold		Appelez-nous	-
3	40208V		Door Panel - Avocado		Appelez-nous	-
3	40208F		Door Panel - White		Appelez-nous	-
3	40208C		Door Panel - Cooppertone		Appelez-nous	-
4	0042767		Window Assy Wall Ovens		Appelez-nous	-
5	Y0040732		Door Baffle Wall Oven		Appelez-nous	-
6	Y0041974		Sub 41966 Insulation 2x20x65		Appelez-nous	-
8	40237		Door Liner, Enamel				$ 22.64
9	Y0041868		Sub 41870, Tinnerman Clip		Appelez-nous	-
10	W11164114		Screw, No.10-24x3/4 (pan Ph Hd)   (Replaces: Y0041767)				$ 3.94
11	Y00000000		See Note Washer		Appelez-nous	-
12	M0282009		Nut   (Replaces: Y0041844)				$ 12.66
13	0041791		Metl Scrw 10ax3/4 Ph Pan Hd Bk		Appelez-nous	-
14	41782		Screw, Panel Mtg.		Appelez-nous	-
15	Y00000000		See Note End Cap		Appelez-nous	-
NI	42478		Handle		Appelez-nous	-
NI	Y0043185		Tape, Foam, Double Coat (roll)		Appelez-nous	-
NI	Y0042484		Door Side Trim-lt		Appelez-nous	-
NI	50035		Screw, Window Ass`y Mtg.		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
