SELECT A DIAGRAM

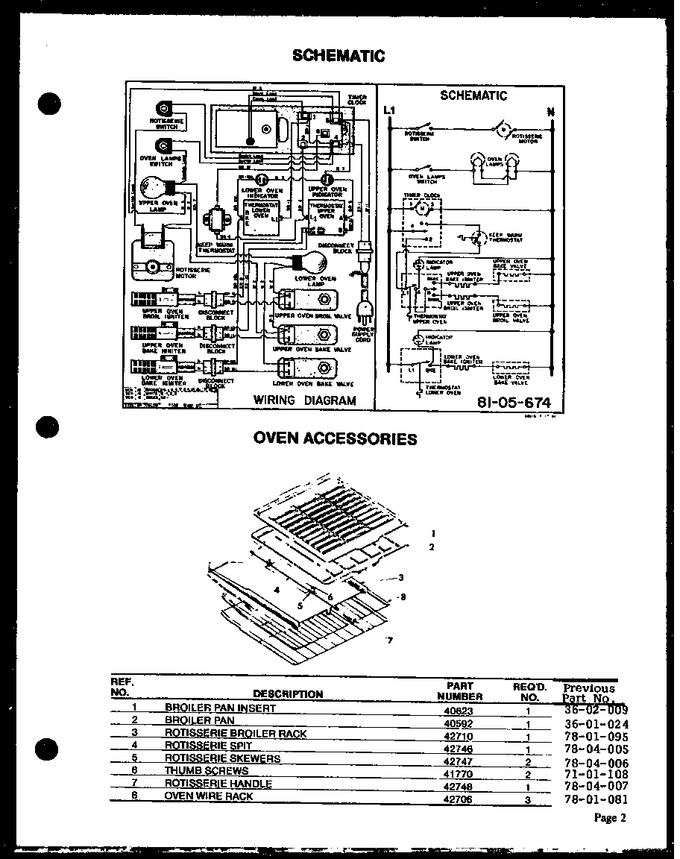

01 - Black Glass Door
02 - Cabinet Section
03 - Oven Door
04 - Page 1
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4396923 | Sub 90001 Lo-broil Pan & Grid (Replaces: Y0040623) |
|
Immediately | $ 54.64 | ||||
| 2 | 4396923 | Sub 90001 Lo-broil Pan & Grid (Replaces: Y0040592) |
|
Immediately | $ 54.64 | ||||
| 3 | 0042710 | Rack |
|
- | |||||
| 4 | 0042746 | Rotisserie Spit |
|
- | |||||
| 5 | 0042747 | Skewer |
|
- | |||||
| 6 | 0041770 | Screw 1/4 20x1/2 Thumb |
|
- | |||||
| 7 | 0042748 | Rotisserie Handle |
|
- | |||||
| 8 | 0042706 | Oven Wire Rack Eo&go |
|
- |
