01 - Black Glass Door

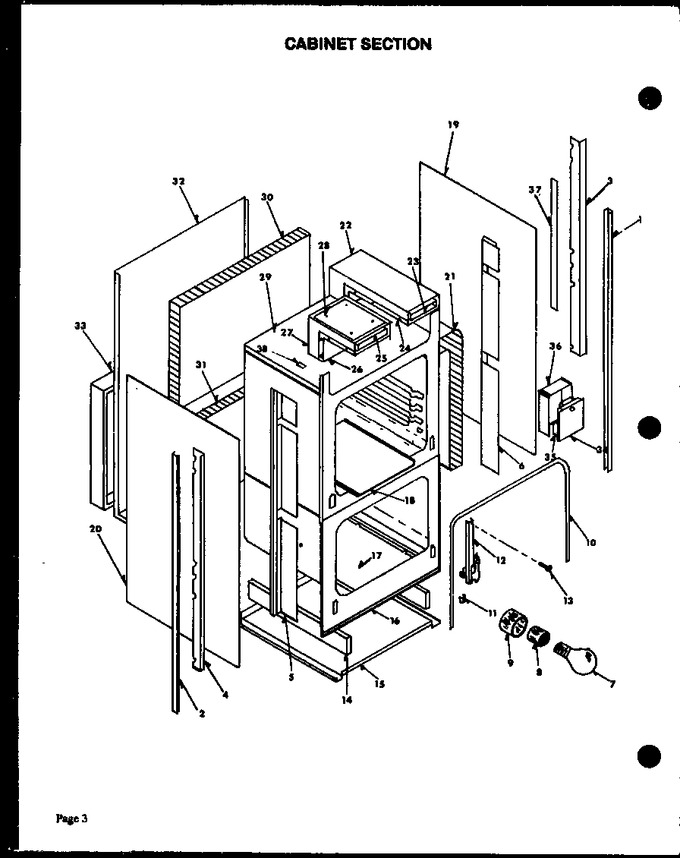

02 - Cabinet Section


03 - Oven Door


04 - Page 1


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	42574		Trim		Appelez-nous	-
2	0041839		Black Screw 8-18x.500		Appelez-nous	-
2	Y0042587		Side Trim Left (black) Ko791		Appelez-nous	-
3	Y0040713		Main Front Heat Shield		Appelez-nous	-
4	Y0040713		Main Front Heat Shield		Appelez-nous	-
5	0040685		Hinge Shield Lt Go&eo Double		Appelez-nous	-
6	0040678		Hinge Shield Rt Go&eo Double		Appelez-nous	-
7	Y0042175		Bulb, Light		Appelez-nous	-
8	0042180		Sub 90264, Kit, Lite Socket		Appelez-nous	-
9	40684		Light Cup, Lower Over		Appelez-nous	-
10	0042398		Oven Door Seal Eo & Go		Appelez-nous	-
11	0041876		Door Seal Clips		Appelez-nous	-
12	Y0041911		Mitchell Door Hinge		Appelez-nous	-
13	41800		Screw, Hinge Mtg.		Appelez-nous	-
14	Y0040126		Base Connector Go&eo Double		Appelez-nous	-
14	Y0041795		Screw 8x23/16 Hex Wash Hd		Appelez-nous	-
15	Y0040282		Sub 52515, Base, Cabinet		Appelez-nous	-
16	0040388		Lower Door Trim Ko491		Appelez-nous	-
17	40669		Insulation Cover		Appelez-nous	-
18	0041378		Sub 58628cg, Oven Bottom		Appelez-nous	-
19	40301		Cabinet Side				$ 32.34
20	40301		Cabinet Side				$ 32.34
21	50133		Insulation, 2 X 20 X 98		Appelez-nous	-
22	Y0040694		Low Flue Insul Cover Bott 491		Appelez-nous	-
23	Y0040574		Low Oven Vent Top Go 491		Appelez-nous	-
24	0040695		Low Flue Insul Cover Top 491		Appelez-nous	-
25	Y0040576		Flue Box		Appelez-nous	-
26	40718		Flue Box Cover, Bottom		Appelez-nous	-
27	Y0040717		Flue Box Cover Top Dko493		Appelez-nous	-
28	Y0040711		Flue Box Cover Baffle Dko-493		Appelez-nous	-
29	Y0040284		Cabinet Top Eo & Go		Appelez-nous	-
30	Y0041099		Sub 41966, Insulation		Appelez-nous	-
31	Y0041099		Sub 41966, Insulation		Appelez-nous	-
32	Y0040347		Cabinet Back Qko491		Appelez-nous	-
33	0040680		Back Air Channel Go491		Appelez-nous	-
34	WP3400882		Screw, No.8-32 X 3/16 Pph   (Replaces: Y0041768)			Immediately	$ 6.80
34	Y0040627		Plate, Cover		Appelez-nous	-
35	Y0042227		Kit, Rotisserie Motor		Appelez-nous	-
35	Y0041783		Screw, No.10 X 3/8``		Appelez-nous	-
36	Y0040631		Rotisserie Motor Cover Japan		Appelez-nous	-
37	Y0040682		Capillary Cover Eo Double Jap		Appelez-nous	-
38	41877		Strain Relief		Appelez-nous	-
