SELECT A DIAGRAM

01 - Black Glass Door

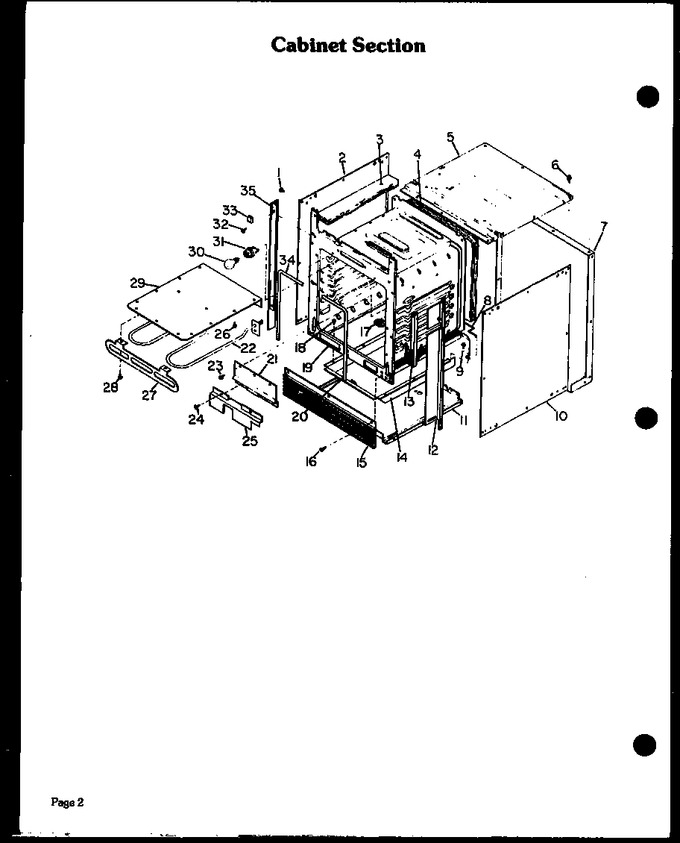

02 - Cabinet Section


03 - Control Panel Section


04 - Oven Accessories


05 - Oven Door


06 - Page 1


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y41808		Screw		Appelez-nous	-
2	40330		Side Panel		Appelez-nous	-
3	Y0041116		Sub 41966, Insulation		Appelez-nous	-
3	0041098		Insulation 2x6x20		Appelez-nous	-
4	41123		Pilot Nut				$ 17.81
5	Y0040284		Cabinet Top Eo & Go		Appelez-nous	-
6	Y41808		Screw		Appelez-nous	-
7	40356		Cabinet Back		Appelez-nous	-
8	Y0040730		Valve Housing		Appelez-nous	-
9	Y41808		Screw		Appelez-nous	-
10	40330		Side Panel		Appelez-nous	-
11	Y0040282		Sub 52515, Base, Cabinet		Appelez-nous	-
12	0040826		Hinge Shield Rt Ko-751		Appelez-nous	-
12	Y0040827		Hinge Shield Lt Ko-751		Appelez-nous	-
13	Y0041911		Mitchell Door Hinge		Appelez-nous	-
14	0040823		Sub 53166, Cover, Insulation		Appelez-nous	-
15	Y0042571		Lower Trim (black)		Appelez-nous	-
16	WPY706189		Metal Screw 8ax3/8 Ph Tr Bk   (Replaces: Y0041794)			Immediately	$ 6.80
17	0041878		Capillary Bulb Clip Double Eo		Appelez-nous	-
18	Y41808		Screw		Appelez-nous	-
20	0041876		Door Seal Clips		Appelez-nous	-
20	0042411		Oven Door Seal Rt Ko-751		Appelez-nous	-
21	Y40853		Control Access Cover		Appelez-nous	-
22	Y0042165		Broil Element Ko-751		Appelez-nous	-
23	Y41808		Screw		Appelez-nous	-
24	Y41808		Screw		Appelez-nous	-
25	Y0040824		Flame Switch Cover Ko-751		Appelez-nous	-
26	Y41808		Screw		Appelez-nous	-
27	0040862		Broil Element Support Brkt		Appelez-nous	-
28	Y41808		Screw		Appelez-nous	-
29	40825		Broil Reflector		Appelez-nous	-
30	Y0042175		Bulb, Light		Appelez-nous	-
31	0042180		Sub 90264, Kit, Lite Socket		Appelez-nous	-
32	0041839		Black Screw 8-18x.500		Appelez-nous	-
33	Y0041995		Door Spacer Dko751		Appelez-nous	-
34	0042412		Oven Door Seal Lt Ko-751		Appelez-nous	-
34	0041876		Door Seal Clips		Appelez-nous	-
35	Y0042578		Side Trim Left (black) Ko851		Appelez-nous	-
35	Y40852		Regulator Cover		Appelez-nous	-
35	42715		Spacer		Appelez-nous	-
35	Y0042577		Side Trim Right (black) Ko851		Appelez-nous	-
35	40683		Capillary Cover		Appelez-nous	-
35	Y0040847		Inlet Valve Shield		Appelez-nous	-
NI	41874		Thermostat Bulb Clip, Lower Ov		Appelez-nous	-
NI	0041791		Metl Scrw 10ax3/4 Ph Pan Hd Bk		Appelez-nous	-
NI	0042661		Plug Button For 3/4 Hole Black		Appelez-nous	-
NI	Y0040873		Thermostat Bulb Shield Eos		Appelez-nous	-
NI	0041878		Capillary Bulb Clip Double Eo		Appelez-nous	-
NI	42715		Spacer		Appelez-nous	-
NI	Y0040886		Bulb Shield 691 Low Oven		Appelez-nous	-
NI	Y0040887		Heat Shield		Appelez-nous	-
NI	Y0040900		Bottom Plate Spacer Ko-591		Appelez-nous	-
NI	40573		Lower Oven Vent Back		Appelez-nous	-
NI	0041801		Screw No.8-18x.375 Ab		Appelez-nous	-
NI	Y0041104		Flue Box Insulation 491 493		Appelez-nous	-
NI	Y0041105		Flue Box Insulation 491 493		Appelez-nous	-
NI	Y40853		Control Access Cover		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
