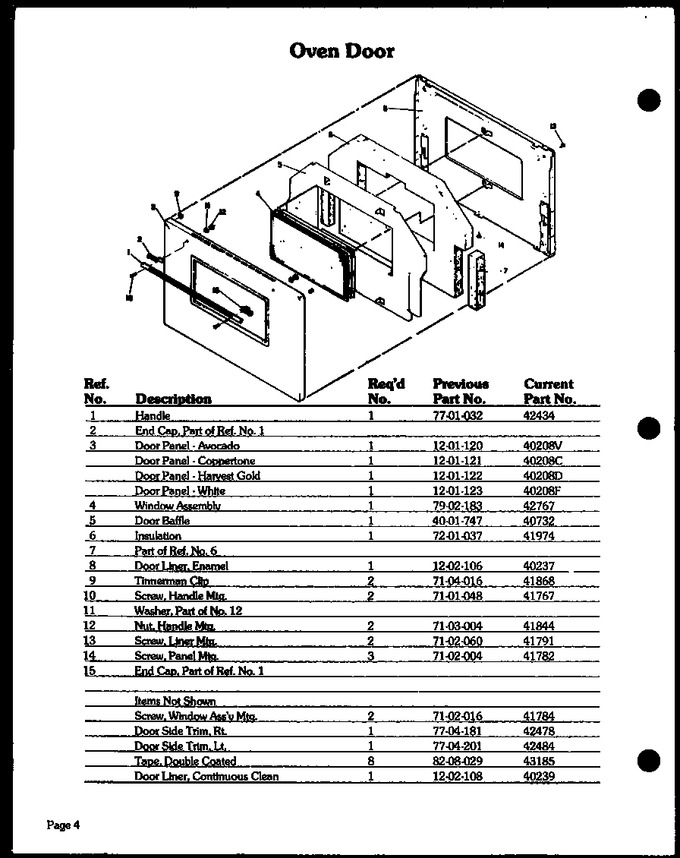

05 - Oven Door


06 - Page 1


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0042434		Handle 2250 4500 9m No Su 7500		Appelez-nous	-
1	Y0040668		Control Housing Eo&go Japan		Appelez-nous	-
2	Y00000000		See Note Hold Warm Thermostat Cover		Appelez-nous	-
3	40208D		Door Panel - Harvest Gold		Appelez-nous	-
3	Y00000000		See Note Screw, Cover Mtg.		Appelez-nous	-
3	40208V		Door Panel - Avocado		Appelez-nous	-
3	40208C		Door Panel - Cooppertone		Appelez-nous	-
3	40208F		Door Panel - White		Appelez-nous	-
4	0042767		Window Assy Wall Ovens		Appelez-nous	-
4	0042071		Thermostat-hold Warm		Appelez-nous	-
5	Y0040732		Door Baffle Wall Oven		Appelez-nous	-
5	0042297		Thermostat		Appelez-nous	-
6	Y0041974		Sub 41966 Insulation 2x20x65		Appelez-nous	-
6	0042298		T-stat 5c-1m-2.5m		Appelez-nous	-
7	Y0042183		Indicator Light		Appelez-nous	-
8	40237		Door Liner, Enamel				$ 22.64
8	0040890		Control Mtg Brkt Co590		Appelez-nous	-
9	Y0041868		Sub 41870, Tinnerman Clip		Appelez-nous	-
9	WP3400882		Screw, No.8-32 X 3/16 Pph   (Replaces: Y0041768)			Immediately	$ 6.80
10	Y0040392		Cabinet Trim Co-450, 480, 490		Appelez-nous	-
10	W11164114		Screw, No.10-24x3/4 (pan Ph Hd)   (Replaces: Y0041767)				$ 3.94
11	42589		Rack		Appelez-nous	-
12	0042805		Control Panel Glass Ko791		Appelez-nous	-
12	M0282009		Nut   (Replaces: Y0041844)				$ 12.66
13	0041791		Metl Scrw 10ax3/4 Ph Pan Hd Bk		Appelez-nous	-
13	0042655		Sub 52672, Knob, T-stat, Lower		Appelez-nous	-
14	41782		Screw, Panel Mtg.		Appelez-nous	-
14	0042654		Sub 52671, Knob, T-stat, Upper		Appelez-nous	-
15	Y0042633		Knob, Clock W/o Spring		Appelez-nous	-
15	Y00000000		See Note End Cap, Part Of Ref. No.1		Appelez-nous	-
16	Y0042633		Knob, Clock W/o Spring		Appelez-nous	-
17	Y0042590		Top Trim Extrusion Ko791		Appelez-nous	-
18	WPY706189		Metal Screw 8ax3/8 Ph Tr Bk   (Replaces: Y0041794)			Immediately	$ 6.80
19	0042735		Vent Grill Qko-491		Appelez-nous	-
20	0042588		Control Panel End Cap Rt. Bl.		Appelez-nous	-
21	Y0041832		Screw No.8x3/8 Sq. Drive		Appelez-nous	-
22	0042592		Vent Extrusion Bottom Ko851		Appelez-nous	-
23	Y0041813		Screw Cabinet Trim		Appelez-nous	-
24	Y41808		Screw		Appelez-nous	-
25	Y0042424		Digital Clock		Appelez-nous	-
26	Y0042012		Switch Bushing ,metal		Appelez-nous	-
27	0042034		Switch Oven Light Eo&go		Appelez-nous	-
28	0042035		Switch Rotiss Eo&go		Appelez-nous	-
NI	0040239		Sub 40237y, Door Liner Gray		Appelez-nous	-
NI	Y0043536		5643497 W.h.		Appelez-nous	-
NI	Y0043538		5643727 W.h.		Appelez-nous	-
NI	0042028		Cord Set (j)		Appelez-nous	-
NI	0041784		Metal Screw 8x1/4 Ph Pan Hd		Appelez-nous	-
NI	Y0043537		5643721 W.h.		Appelez-nous	-
NI	Y0043185		Tape, Foam, Double Coat (roll)		Appelez-nous	-
NI	42478		Handle		Appelez-nous	-
NI	Y0042484		Door Side Trim-lt		Appelez-nous	-
NI	Y0043688		5643339 W.j.		Appelez-nous	-
NI	Y0042594		Cabinet Top Trim		Appelez-nous	-
NI	43679		Wire Jumper		Appelez-nous	-
