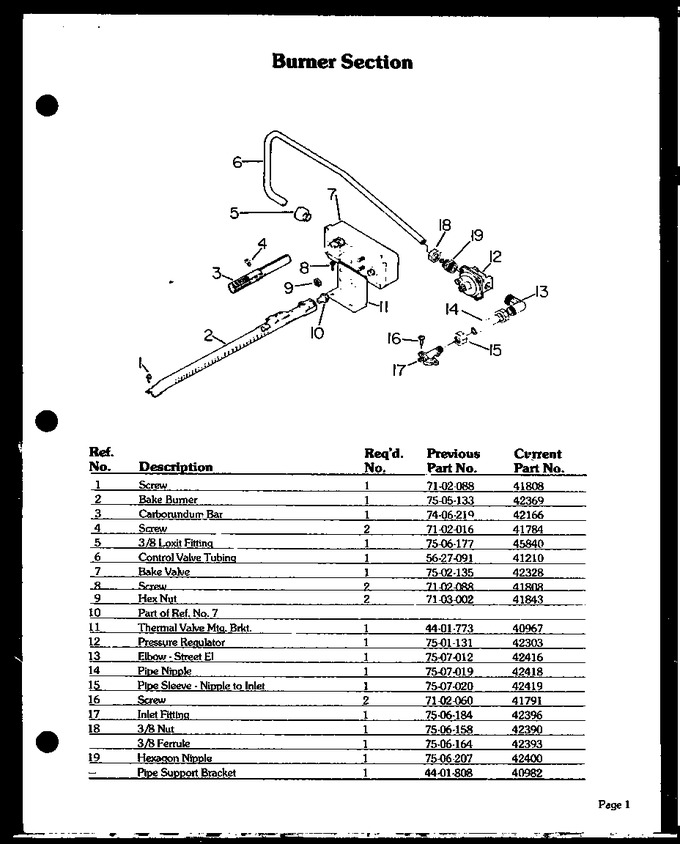

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y41808 | Screw |
|
- | |||||
| 2 | 42369 | Knob |
|
- | |||||
| 3 | Y0042166 | Carborundum Igniter |
|
- | |||||
| 4 | 0041784 | Metal Screw 8x1/4 Ph Pan Hd |
|
- | |||||
| 5 | Y0045840 | Loxit 3/8`` |
|
- | |||||
| 6 | Y0041210 | Sub 90761, Tubing 3/8`` O.d. |
|
- | |||||
| 7 | 0042328 | Valve, Bake Mo-751 Ko-751 |
|
- | |||||
| 8 | Y41808 | Screw |
|
- | |||||
| 9 | M0282005 | Nut A (Replaces: Y0041843) |
|
$ 7.42 | |||||
| 11 | 1N4004 | Thermal Valve Mtg. Brkt. (Replaces: 40967) |
|
- | |||||
| 12 | 0042303 | Regulator |
|
- | |||||
| 13 | Y0042416 | Street Ell |
|
- | |||||
| 14 | 42418 | Code J |
|
- | |||||
| 15 | Y0042419 | Coupling, 1/2`` Female |
|
- | |||||
| 16 | 0041791 | Metl Scrw 10ax3/4 Ph Pan Hd Bk |
|
- | |||||
| 17 | 0042396 | Inlet Fitting-go-321 351 |
|
- | |||||
| 18 | Y0042390 | 3/8`` Compression Nut |
|
- | |||||
| 18 | Y0042393 | Sub 92579, 3/8`` Comp. Sleeve |
|
- | |||||
| 19 | 42400 | Sub 42399 |
|
- | |||||
| 19 | Y0040982 | Orifice Mtg. Brkt. Kgt591 |
|
- | |||||
| NOTE: | Dgo-851 Insert All Supplements On Models That End With The Letters ``a`` Thru ``z``at The Back Of The Part List. |
|
- |
