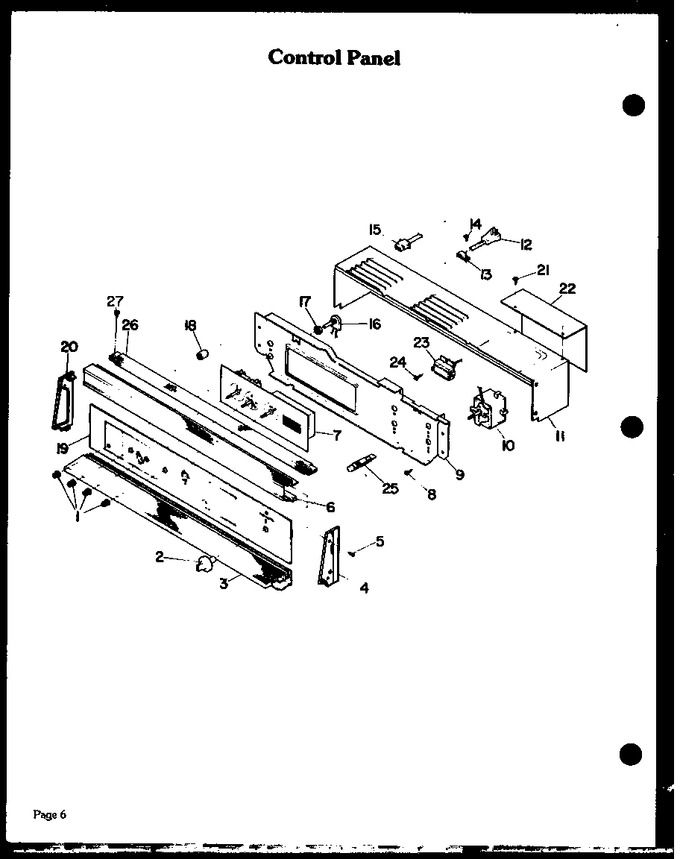

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0042633		Knob, Clock W/o Spring		Appelez-nous	-
1	0047209		Sub 41370 Broil Burner Assy.		Appelez-nous	-
2	PS21-4K		Screw   (Replaces: 50015)				$ 0.01
2	0042654		Sub 52671, Knob, T-stat, Upper		Appelez-nous	-
3	Y0042166		Carborundum Igniter		Appelez-nous	-
3	0042592		Vent Extrusion Bottom Ko851		Appelez-nous	-
4	0042362		Bake Burner Edison		Appelez-nous	-
4	42589		Rack		Appelez-nous	-
5	Y0041785		Screw, No.6-32 X .250 Pan Hd Ph		Appelez-nous	-
5	0041839		Black Screw 8-18x.500		Appelez-nous	-
6	Y0042591		Control Panel Extrusion Top		Appelez-nous	-
6	PS21-4K		Screw   (Replaces: 50015)				$ 0.01
7	Y0042424		Digital Clock		Appelez-nous	-
7	0041791		Metl Scrw 10ax3/4 Ph Pan Hd Bk		Appelez-nous	-
8	Y00000000		See Note Washer		Appelez-nous	-
8	Y41808		Screw		Appelez-nous	-
9	0040890		Control Mtg Brkt Co590		Appelez-nous	-
9	42387		Medallion		Appelez-nous	-
10	0042297		Thermostat		Appelez-nous	-
10	Y0042390		3/8`` Compression Nut		Appelez-nous	-
10	Y0041785		Screw, No.6-32 X .250 Pan Hd Ph		Appelez-nous	-
11	0041201		Sub 90761, Tubing 3/8		Appelez-nous	-
11	Y0040668		Control Housing Eo&go Japan		Appelez-nous	-
12	Y0042027		Supply Cord		Appelez-nous	-
12	42397		Elbow Fitting		Appelez-nous	-
13	0041901		Speed Clamp (tube Type)		Appelez-nous	-
13	42307		Code J		Appelez-nous	-
14	WP8281227		Tapng Scrw 8 32x3/8 Hex Hd   (Replaces: Y0041792)				$ 9.86
14	Y0045840		Loxit 3/8``		Appelez-nous	-
15	42417		Heater Element		Appelez-nous	-
16	Y0041202		Sub 90761, Tubing, 3/8``, O.d.		Appelez-nous	-
16	0042034		Switch Oven Light Eo&go		Appelez-nous	-
17	0042314		Valve, Thermal Ko 391 693		Appelez-nous	-
18	0042303		Regulator		Appelez-nous	-
18	Y0042012		Switch Bushing ,metal		Appelez-nous	-
19	0042806		Control Panel Glass Ko851		Appelez-nous	-
19	Y0042308		Bake Valve Low Oven Ko691		Appelez-nous	-
20	41205		Trim		Appelez-nous	-
20	0042588		Control Panel End Cap Rt. Bl.		Appelez-nous	-
21	Y41808		Screw		Appelez-nous	-
21	Y00000000		See Note Screw -- (not Used)		Appelez-nous	-
22	Y00000000		See Note Cover Plate -- (not Used)		Appelez-nous	-
22	Y0042404		Broil Orifice Go		Appelez-nous	-
23	0042071		Thermostat-hold Warm		Appelez-nous	-
24	Y41808		Screw		Appelez-nous	-
25	Y0042183		Indicator Light		Appelez-nous	-
26	Y0040392		Cabinet Trim Co-450, 480, 490		Appelez-nous	-
27	WPY706189		Metal Screw 8ax3/8 Ph Tr Bk   (Replaces: Y0041794)			Immediately	$ 6.80
NI	Y0043688		5643339 W.j.		Appelez-nous	-
NI	40899		Broil Igniter Shield		Appelez-nous	-
NI	43507		Compressor		Appelez-nous	-
