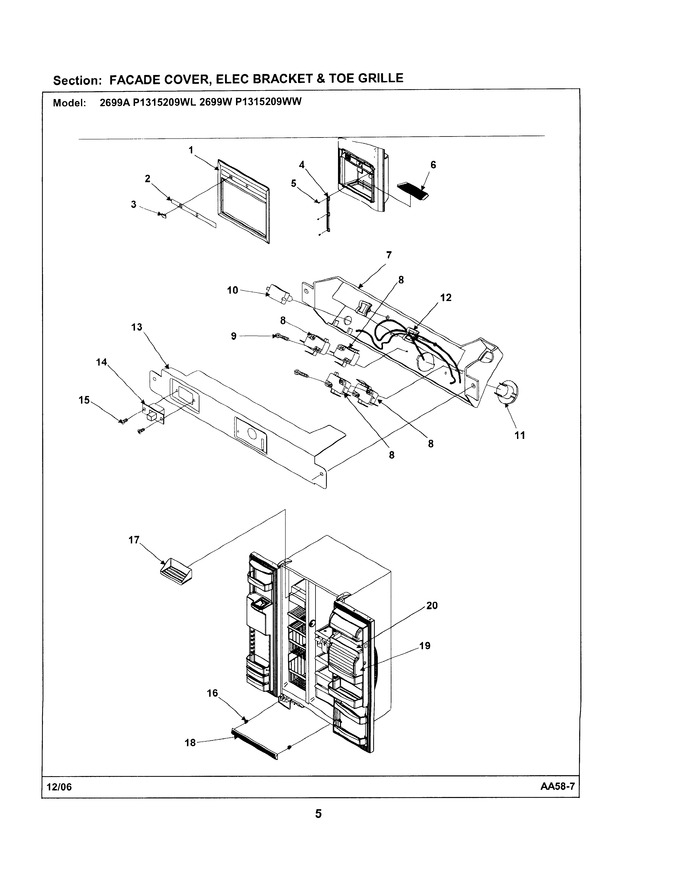

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12280005		Facade-l Disp		Appelez-nous	-
2	10984659		Insert, Facade (almond)		Appelez-nous	-
3	12043806		Cap-white Switch		Appelez-nous	-
4	12335602		Extension, Cavity		Appelez-nous	-
5	M0216517		Screw		Appelez-nous	-
6	D7750609		Grille, Sump L		Appelez-nous	-
7	10323305		Bracket, Elec Mtg		Appelez-nous	-
8	12419601		Switch, Limit		Appelez-nous	-
9	M0237809		Screw, T.f.		Appelez-nous	-
10	10166101		Switch-light Cavity				$ 6.49
11	10131702		Socket, Light		Appelez-nous	-
12	B5667304		Wire Clip		Appelez-nous	-
13	10131802		Cover-elec Brkt		Appelez-nous	-
14	10166002		Switch-crushed/cube		Appelez-nous	-
15	W11084238		Screw   (Replaces: M0234001)		Appelez-nous	-
16	M0117303		Clip, Grille				$ 5.65
17	10870802		Shelf, Ice Cream		Appelez-nous	-
18	12321810		Kit, Toe Grille (alm)		Appelez-nous	-
19	12424302		Assy, Chiller		Appelez-nous	-
20	12309403		Shelf, Snack		Appelez-nous	-
NI	12043807		Cap-almond Switch				$ 464.24
