| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
D7714407 |
|
Socket-light |
|
Appelez-nous
|
- |
|
|
|
| 2 |
D7753503 |
|
Plate-light Socket |
|
Appelez-nous
|
- |
|
|
|
| 3 |
D7786603 |
|
Shield, Light |
|
Appelez-nous
|
- |
|
|
|
| 4 |
M0322202 |
|
Tie Wire |
|
Appelez-nous
|
- |
|
|
|
| 5 |
M0580007 |
|
Grommet, Screw |
|
Appelez-nous
|
- |
|
|
|
| 6 |
40A15 |
 |
Bulb, Light (40 Watt) (Replaces: A0282803) |
|
|
Immediately |
$ 1.98 |
|
|
| 7 |
67006425 |
 |
Screw, Sm (Replaces: M0238616) |
|
|
Immediately |
$ 7.30 |
|
|
| 8 |
B5733302 |
|
Clip, Ground |
|
Appelez-nous
|
- |
|
|
|
| 9 |
A3189335 |
|
Gasket Foam |
|
Appelez-nous
|
- |
|
|
|
| 10 |
M0560005 |
|
Support |
|
Appelez-nous
|
- |
|
|
|
| 11 |
WP22002933 |
|
Screw, Sm (Replaces: M0211357) |
|
|
|
$ 8.06 |
|
|
| 12 |
12314702 |
|
Basket, Frz 13`` |
|
Appelez-nous
|
- |
|
|
|
| 13 |
12353304 |
|
Shelf, Sta Frz |
|
Appelez-nous
|
- |
|
|
|
| 14 |
12363401 |
|
Shelf, Stationary |
|
Appelez-nous
|
- |
|
|
|
| 15 |
12015102 |
|
Rail, Shelf (lt) |
|
Appelez-nous
|
- |
|
|
|
| 16 |
10972802 |
|
Rail, Shelf (rt) |
|
Appelez-nous
|
- |
|
|
|
| 17 |
12015002 |
 |
Support, Shelf (lt) |
|
|
|
$ 7.38 |
|
|
| 18 |
WP10941102 |
 |
Support, Shelf (rt) |
|
|
|
$ 11.81 |
|
|
| 19 |
C8973801 |
|
Support, Frz Shelf |
|
|
|
$ 8.35 |
|
|
| 20 |
WP98165 |
 |
Screw, Sm (Replaces: M0211018) |
|
|
|
$ 8.57 |
|
|
| 21 |
12314101 |
|
Trim, Basket/shelf |
|
Appelez-nous
|
- |
|
|
|
| 22 |
12314102 |
|
Trim, Basket/shelf |
|
Appelez-nous
|
- |
|
|
|

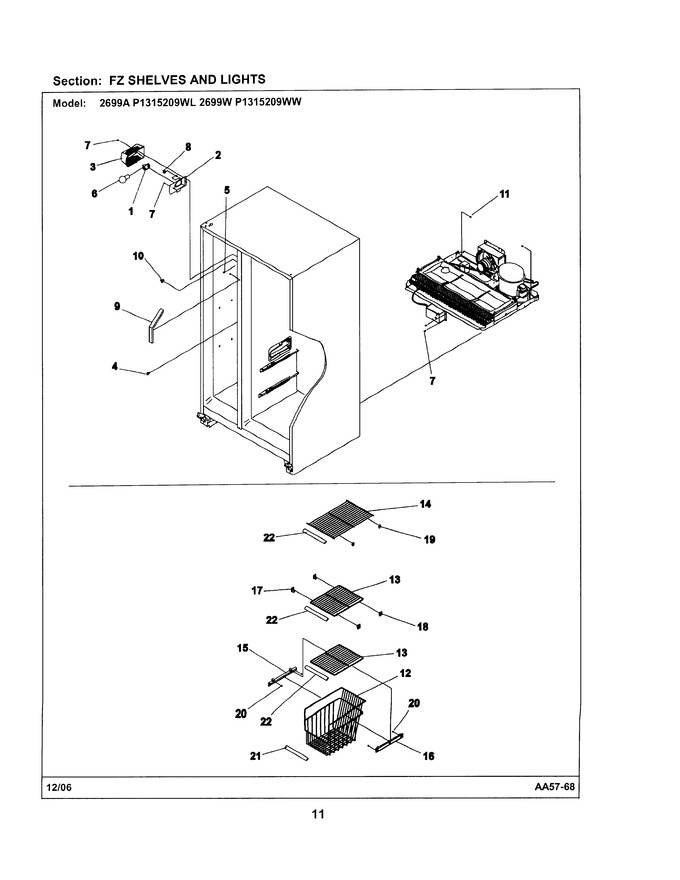

View Diagram in Separate Window
