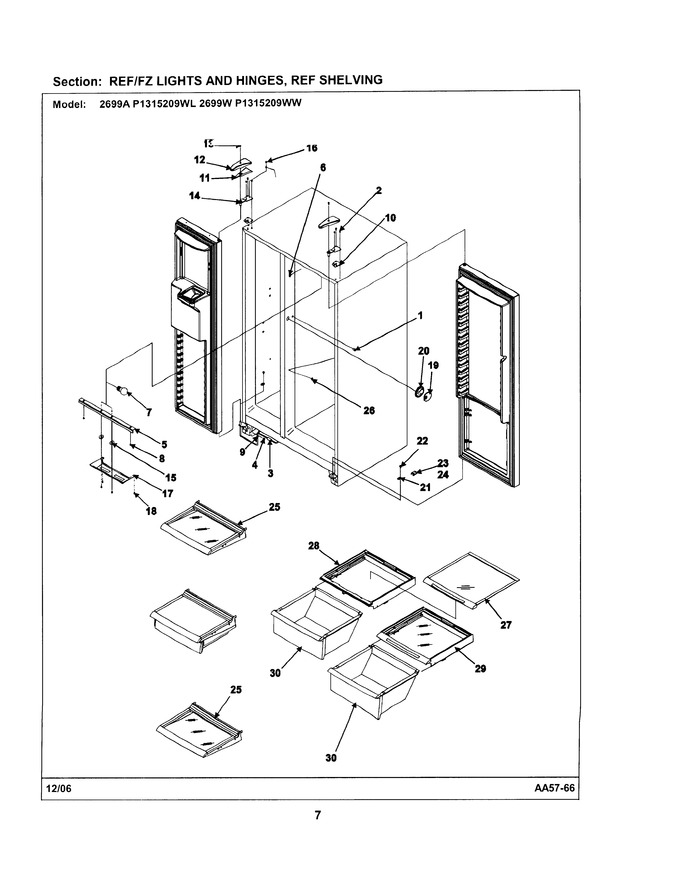

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 10426801 | Clip, Air Tunnel |
|
- | |||||
| 2 | R9800670 | Screw, Tf (Replaces: M0238731) |
|
$ 10.58 | |||||
| 3 | WP4373559 | Union K (Replaces: B5706901) |
|
$ 81.22 | |||||
| 4 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 8.25 | ||||
| 5 | 10014716 | Shield, Light |
|
- | |||||
| 6 | M0580007 | Grommet, Screw |
|
- | |||||
| 7 | 40A15 | Bulb, Light (40 Watt) (Replaces: A0282803) |
|
Immediately | $ 1.98 | ||||
| 8 | 67006425 | Screw, Sm (Replaces: M0238616) |
|
Immediately | $ 7.30 | ||||
| 9 | W10833902 | Clamp, Tube (Replaces: M0108105) |
|
$ 11.54 | |||||
| 10 | 12428101 | Shim, Top Hinge |
|
- | |||||
| 11 | 10863501 | Foil, Hng Cov |
|
- | |||||
| 12 | 10849407 | Cover-l Hinge |
|
- | |||||
| 13 | WP8281196 | Screw-mach (Replaces: M0202327) |
|
Immediately | $ 7.55 | ||||
| 14 | 12426201 | Hinge, Top (e-ct) |
|
- | |||||
| 15 | M0270508 | Washer |
|
- | |||||
| 16 | W11214483 | Screw, Mach (Replaces: M0202321) |
|
$ 14.72 | |||||
| 17 | 10493302 | Cover, Frz Light |
|
- | |||||
| 18 | M0238846 | Screw-sm |
|
- | |||||
| 19 | 10164814 | Grille, Control |
|
- | |||||
| 20 | 10164705 | Control-air |
|
- | |||||
| 21 | R0181181 | Closure, Door (blk) (Replaces: 12431302) |
|
Immediately | $ 7.55 | ||||
| 22 | WP8281227 | Screw, Tc (Replaces: M0220432) |
|
$ 10.96 | |||||
| 23 | WP67005716 | Shim, Dr Closure (blk) (Replaces: 10361806) |
|
$ 7.83 | |||||
| 24 | 10361803 | Shim, Dr Bushing |
|
$ 5.51 | |||||
| 25 | 10809610 | Shelf, Full Stationary |
|
- | |||||
| 26 | C8973701 | Plug, Frz Shelf Support |
|
- | |||||
| 27 | 10783110 | Shelf-top Crisper |
|
- | |||||
| 28 | 10882815 | Assy, Crisper Frame |
|
- | |||||
| 29 | 10882816 | Assy, Crisp Frame |
|
- | |||||
| 30 | 10783201 | Pan,crisper |
|
- | |||||
| NI | 10361804 | Shim, Dr Bushing |
|
- | |||||
| NI | 12310203 | Retainer, Frz Bucket |
|
- | |||||
| NI | 12310201 | Retainer, Ref Bucket |
|
- |
