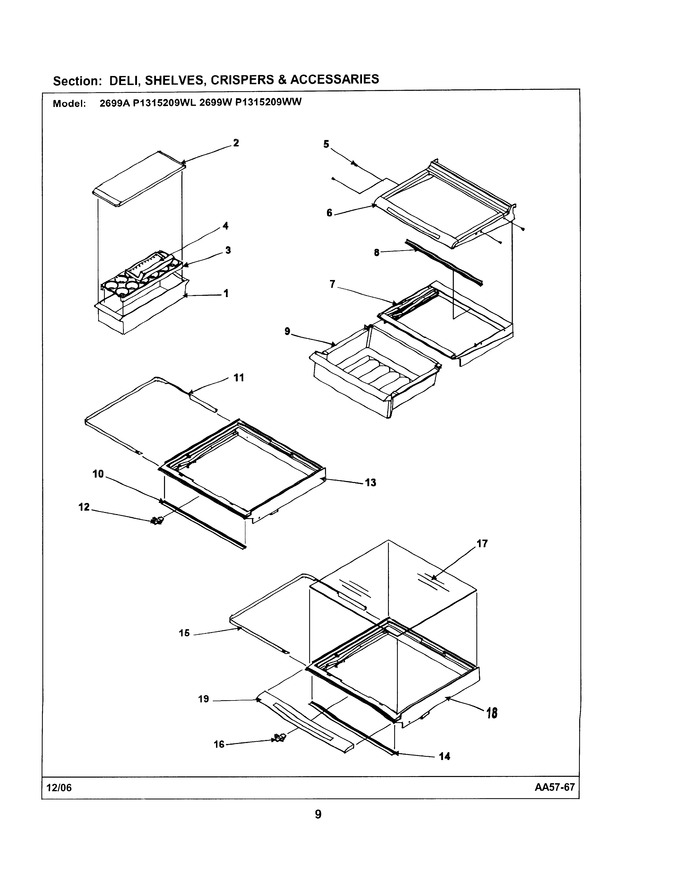

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10423129		Bin-utility		Appelez-nous	-
2	10436404		Lid, Utility				$ 60.85
3	10436506		Tray, Egg				$ 8.28
4	10310901		Tray, Butter		Appelez-nous	-
5	M0213129		Screw		Appelez-nous	-
6	10809610		Shelf, Full Stationary		Appelez-nous	-
7	10783803		Frame, Deli		Appelez-nous	-
8	10876302		Director-deli		Appelez-nous	-
9	10784201		Pan, Deli		Appelez-nous	-
10	10968801		Seal-crisp Front		Appelez-nous	-
11	10882701		Band, Crisper		Appelez-nous	-
12	10852501		Slide, Crisper/deli		Appelez-nous	-
13	10782901		Frame,crisper		Appelez-nous	-
14	10968801		Seal-crisp Front		Appelez-nous	-
15	10882701		Band, Crisper		Appelez-nous	-
16	10852501		Slide, Crisper/deli		Appelez-nous	-
17	Y10370066		Glass, Shelf		Appelez-nous	-
18	10782901		Frame,crisper		Appelez-nous	-
19	12113003		Trim-crisper Fr		Appelez-nous	-
