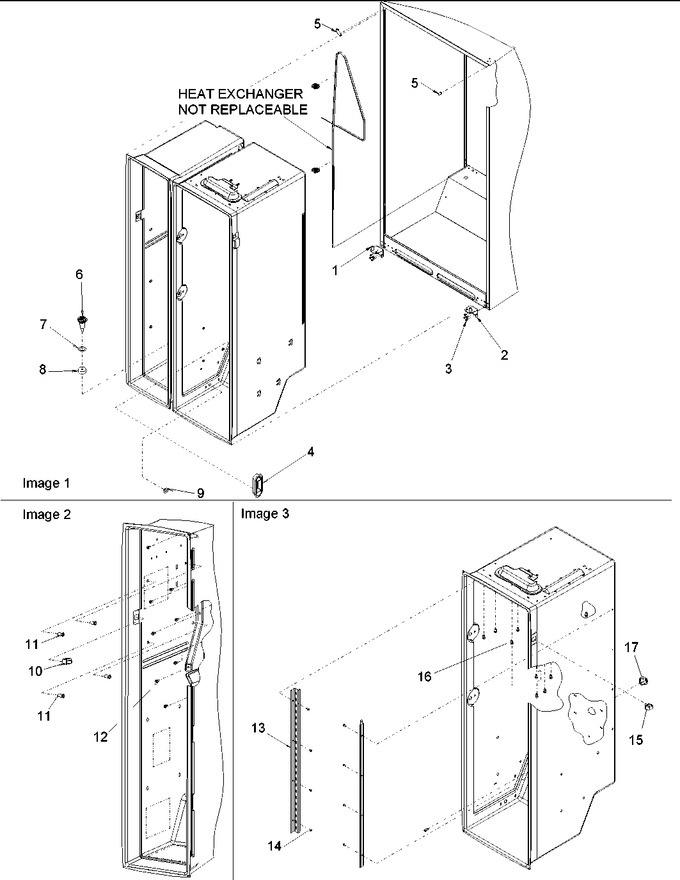

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12570905WD		Hinge, Bottom (lt-wht)		Appelez-nous	-
2	12570906WD		Hinge, Bottom (rt-wht)		Appelez-nous	-
3	WP67006715		Screw, Sm   (Replaces: M0241608)				$ 7.19
4	12634801		Grille, Return Air		Appelez-nous	-
6	12456901		Funnel, Drain		Appelez-nous	-
6	67003484		Cover, Corner (wht)   (Replaces: 12587702W)				$ 20.40
7	WPM0500703		Seal, O Ring   (Replaces: M0500703)				$ 10.92
8	WPB8381501		Gasket, Drain Tube   (Replaces: B8381501)				$ 7.41
9	12567102		Plug, Air Tunnel		Appelez-nous	-
10	W11396033		Switch, Light   (Replaces: 12466103)			Immediately	$ 37.30
11	C8973701		Plug, Frz Shelf Support		Appelez-nous	-
12	M0581003		Grommet, Screw		Appelez-nous	-
13	12614211		Ladder, Powder Ct		Appelez-nous	-
14	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 7.82
15	W11291138		Switch, Ref Light   (Replaces: 12466104)			Immediately	$ 36.67
16	M0580007		Grommet, Screw		Appelez-nous	-
17	W11447232		Socket, Light   (Replaces: Y12570701)			Immediately	$ 13.21
