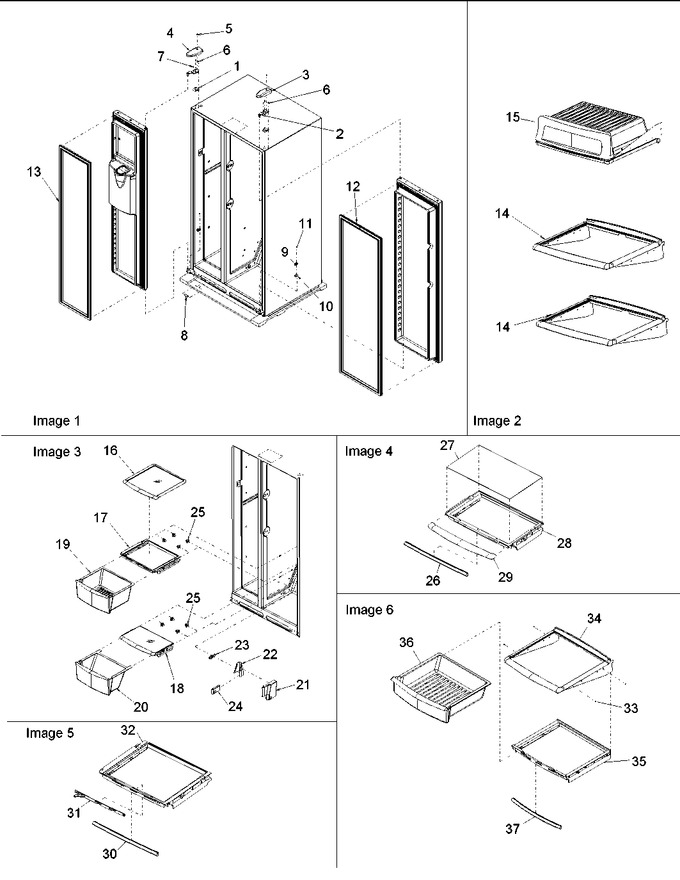

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12579702		Shim, Top Hinge		Appelez-nous	-
2	WP12566607ED		Hinge, Top (blk)   (Replaces: 12566603ED)				$ 91.09
3	12684201W		Cover, Top Hinge (lt-wht)		Appelez-nous	-
4	12684202W		Cover, Top Hinge (rt-wht)		Appelez-nous	-
5	WP8281196		Screw, Mach   (Replaces: M0202336)			Immediately	$ 7.55
6	R9800670		Screw, Tf   (Replaces: M0238731)				$ 10.58
7	W11214483		Screw, Mach   (Replaces: M0202321)				$ 14.72
8	WP2300868		Tube, Union   (Replaces: B5706903)			Immediately	$ 29.05
9	R0181181		Closure, Door (wht)   (Replaces: 12431301)			Immediately	$ 7.55
10	10361805		Shim, Dr Closure (wht)		Appelez-nous	-
11	W11227370		Screw, Tc   (Replaces: M0220431)			Immediately	$ 14.91
12	12591501W		Gasket, Ref Dr (wht)		Appelez-nous	-
13	12591502W		Gasket, Fz Dr (wht)		Appelez-nous	-
14	12457410		Shelf,sta-26		Appelez-nous	-
15	12589805Q		Assy,sm Crisper Frame(26)		Appelez-nous	-
16	12559702		Shelf,top Crisper-dba		Appelez-nous	-
17	12585703Q		Assy,lg Crisper-dba		Appelez-nous	-
18	12585803Q		Assy,deli Frame		Appelez-nous	-
19	WP67001503		Pan, Lg Crisper   (Replaces: 12559504)				$ 155.14
20	WP67001504		Pan, Deli   (Replaces: 12559404)				$ 154.83
21	12586002		Housing,deli Control-dba		Appelez-nous	-
22	12586101		Slide, Deli Control		Appelez-nous	-
23	12586201OR		Control,deli(orange)-dba		Appelez-nous	-
24	12664201		Tunnel, Deli Control		Appelez-nous	-
25	WP12603701		Support, Crisper Frame   (Replaces: 12603701)				$ 10.83
26	12589104		Seal, Sm Crisper Front		Appelez-nous	-
27	12204811		Glass, Shelf		Appelez-nous	-
28	12663501		Frame, Deli		Appelez-nous	-
29	12562401		Trim,deli Front-dba		Appelez-nous	-
30	12589104		Seal, Sm Crisper Front		Appelez-nous	-
31	12562601OR		Slide,lg Crisper(orange)-dba		Appelez-nous	-
32	WP67002723		Frame, Lg Crisper   (Replaces: 12663601)				$ 174.72
33	M0213129		Screw		Appelez-nous	-
34	12457410		Shelf,sta-26		Appelez-nous	-
35	12663701		Frame, Sm Crisper		Appelez-nous	-
36	12559604		Pan,sm Crisper-26		Appelez-nous	-
37	12589104		Seal, Sm Crisper Front		Appelez-nous	-
