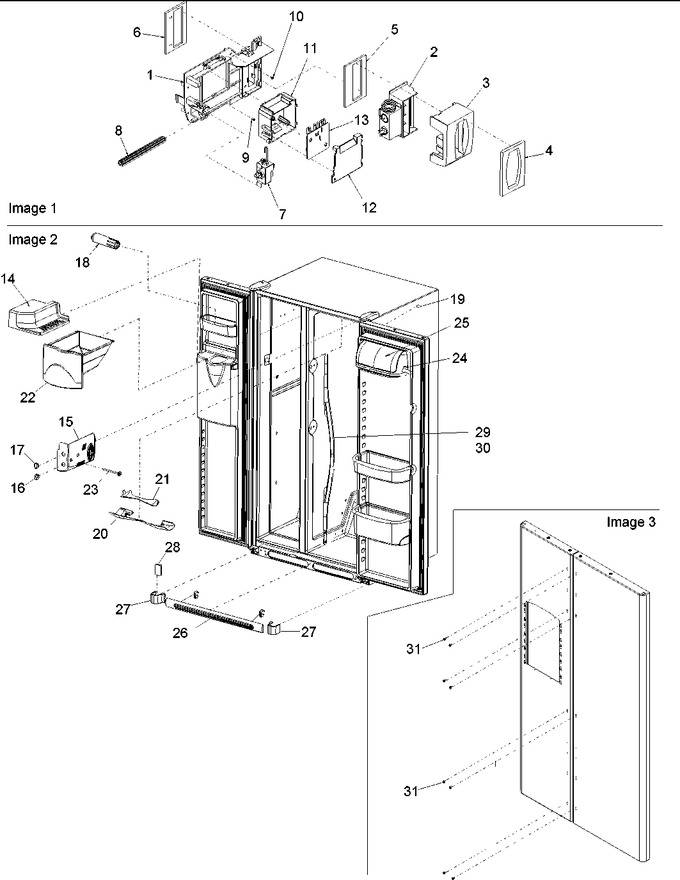

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12558004 | Bracket, Control |
|
- | |||||
| 2 | 12571701 | Control, Damper |
|
$ 107.01 | |||||
| 3 | 12604201 | Insulation, Damper |
|
- | |||||
| 4 | 12582901 | Gasket, Control Cover |
|
$ 5.51 | |||||
| 5 | 12582801 | Gasket, Damper |
|
$ 7.62 | |||||
| 6 | 10383201 | Gasket, Damper |
|
- | |||||
| 7 | WP12351006 | Control, Fz Temp (Replaces: 12351006) |
|
$ 208.11 | |||||
| 8 | 12571801 | Extension, Knob |
|
- | |||||
| 9 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.00 | |||||
| 10 | M0216539 | Screw |
|
- | |||||
| 11 | 12624801 | Box, Defrost Control |
|
- | |||||
| 12 | 12624901 | Cover, Defrost Control |
|
- | |||||
| 13 | WP12566102 | Board, Adaptive Defrost (Replaces: 12566102) |
|
$ 350.29 | |||||
| 14 | 12582102 | Shelf, Quick Chill |
|
- | |||||
| 15 | 12571204 | Cover,control-dba |
|
- | |||||
| 16 | 12581101 | Knob, Control |
|
- | |||||
| 17 | 12581102 | Knob, Control |
|
- | |||||
| 18 | EDR4RXD1B | Net-water Filter(single) (Replaces: 12589201) |
|
Immediately | $ 49.99 | ||||
| 19 | 12618001 | Nameplate-dba |
|
- | |||||
| 20 | 12602910 | Assy,light Cover |
|
- | |||||
| 21 | 12677801 | Lens, Light |
|
- | |||||
| 22 | 12571605 | Bucket,ice-fz Dba |
|
- | |||||
| 23 | M0231426 | Screw |
|
- | |||||
| 24 | 12478101 | Tray, Dairy |
|
- | |||||
| 25 | 12478003 | Door, Dairy |
|
- | |||||
| 26 | 12591001WQ | Assy, Toe Grille (wht) |
|
- | |||||
| 27 | 12561901W | Cover, Lwr Hinge (wht) |
|
$ 6.37 | |||||
| 28 | 12575011 | Tech Sheet-s X S Refrig Xxno |
|
- | |||||
| 29 | 12604401W | Handle(white)-dba |
|
- | |||||
| 30 | 12604501S | Insert,handle(gray) |
|
- | |||||
| 31 | 67006425 | Screw, Sm (Replaces: M0238616) |
|
Immediately | $ 6.95 | ||||
| NI | 12672901 | Harness, Control |
|
- |
