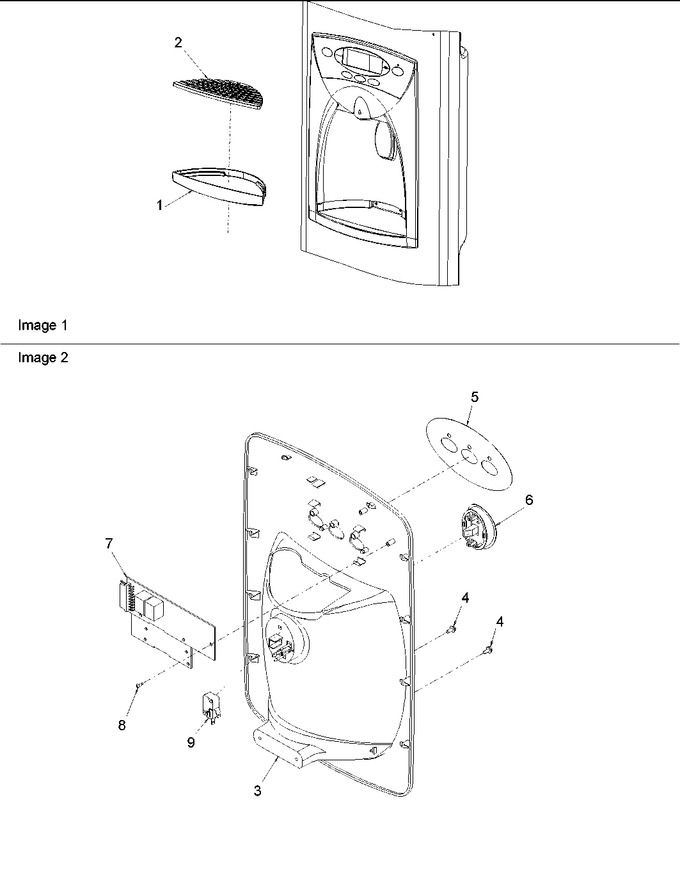

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12596102W		Tray,sump(white)		Appelez-nous	-
2	12596201S		Grille,sump(gray)		Appelez-nous	-
3	12596002W		Facade(white)		Appelez-nous	-
4	67006425		Screw, Sm   (Replaces: M0238642)			Immediately	$ 6.95
5	12665201W		Insert,facade(white)		Appelez-nous	-
6	12598902S		Actr Pad Frame Assy. (stnls)		Appelez-nous	-
7	12550401		Board,control		Appelez-nous	-
8	2006254		Screw,hi/lo   (Replaces: M0237902)				$ 13.13
9	WP12575501		Switch, Limit   (Replaces: 12575501)				$ 68.90
NI	WPM0104106		Clip   (Replaces: M0104106)				$ 7.78

    View Diagram in Separate Window       Print Part List
