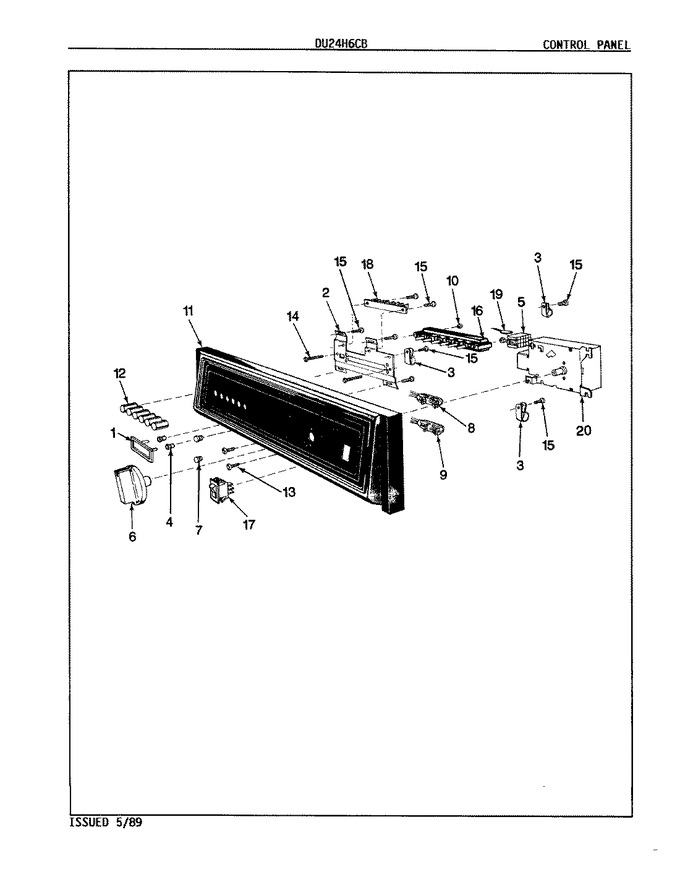

SELECT A DIAGRAM

01 - Control Panel


02 - Detergent Cup


03 - Door


04 - Frame


05 - Inner Tub


06 - Motor, Heater & Spray Arm


07 - Rack


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	809668		Nameplate		Appelez-nous	-
2	809334		Bracket		Appelez-nous	-
3	808442		Wire Clamp		Appelez-nous	-
3	809770		Overlay Panel		Appelez-nous	-
4	809335		Grommet		Appelez-nous	-
5	809296		Terminal Housing		Appelez-nous	-
6	809327		Knob		Appelez-nous	-
7	809036		Lens		Appelez-nous	-
8	809317		Light Assembly		Appelez-nous	-
9	809332		Light Assembly		Appelez-nous	-
10	803346		Nut		Appelez-nous	-
11	809556		Control Panel		Appelez-nous	-
12	809369		Pushbutton		Appelez-nous	-
13	805324		Screw		Appelez-nous	-
14	807103		Screw		Appelez-nous	-
15	809175		Screw		Appelez-nous	-
16	809333		Pb Switch		Appelez-nous	-
17	809359		Rocker Switch		Appelez-nous	-
18	808483		Terminal Board		Appelez-nous	-
19	808333		Terminal		Appelez-nous	-
20	809596		Timer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
