SELECT A DIAGRAM

01 - Control Panel


02 - Detergent Cup


03 - Door


04 - Frame


05 - Inner Tub


06 - Motor, Heater & Spray Arm


07 - Rack

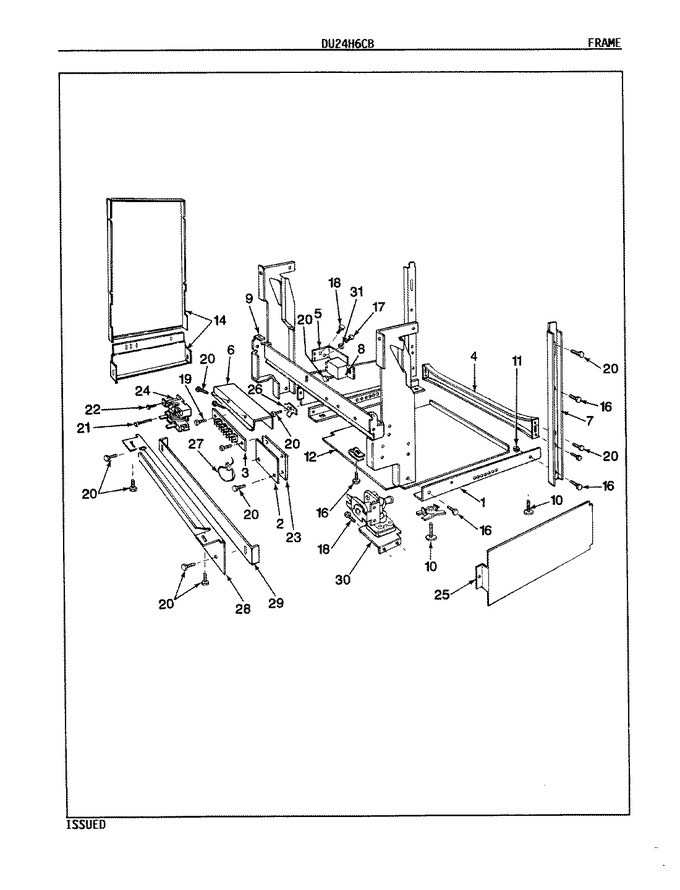

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	809526		Side Angle Kit		Appelez-nous	-
2	809419		Wire Barrier		Appelez-nous	-
3	COMM PART		Terminal Block   (Replaces: 807486)		Appelez-nous	-
4	807852		Rear Brace		Appelez-nous	-
5	807019		Bracket		Appelez-nous	-
6	807849		Bracket		Appelez-nous	-
7	808670		Support Channel		Appelez-nous	-
8	800222		Terminal Cover		Appelez-nous	-
9	807848		Hinge		Appelez-nous	-
10	809422		Leveler		Appelez-nous	-
11	M0282005		Nut   (Replaces: 804619)				$ 7.42
12	808434		Bottom Panel		Appelez-nous	-
13	808433		Side Panel		Appelez-nous	-
14	808880		Side Panel Kit		Appelez-nous	-
15	805255		Relay		Appelez-nous	-
16	806889		Screw		Appelez-nous	-
17	807951		Screw		Appelez-nous	-
18	807950		Screw		Appelez-nous	-
19	807501		Screw		Appelez-nous	-
20	WP90767		Screw   (Replaces: 808658)			Immediately	$ 7.43
21	804672		Screw		Appelez-nous	-
22	WP488234		Screw   (Replaces: 806593)				$ 6.37
23	809144		Wire Shield		Appelez-nous	-
24	W10124350		Not Required Part Or See Note		Appelez-nous	-
25	W10124350		Not Required Part Or See Note		Appelez-nous	-
26	807213		Ground Terminal		Appelez-nous	-
27	809418		Wire Tie		Appelez-nous	-
28	809304		Toe Plate		Appelez-nous	-
29	809303		Adj Toe Plate		Appelez-nous	-
30	809240		Water Valve		Appelez-nous	-
31	807373		Washer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
