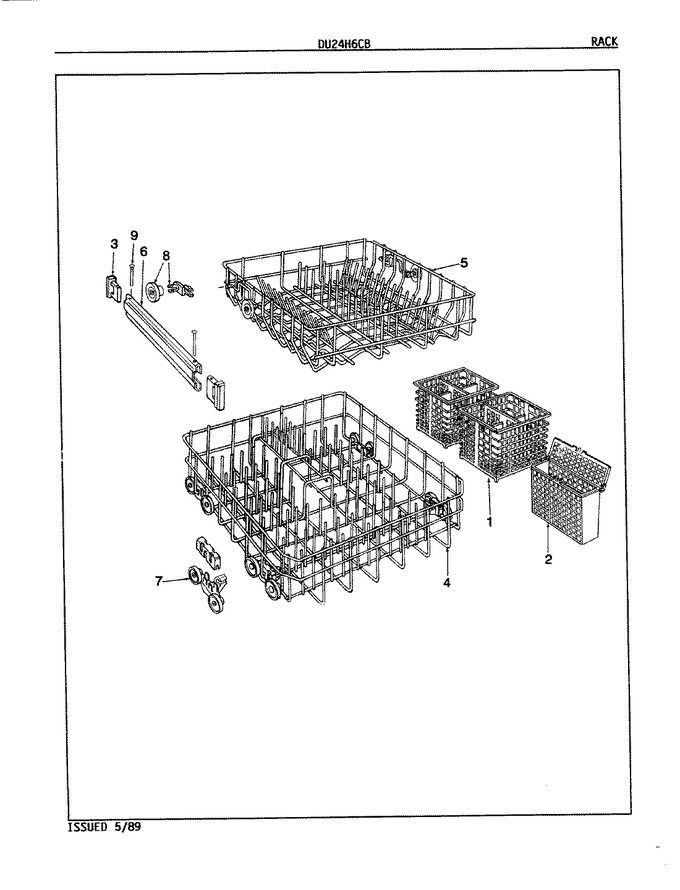

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 808845 | Slvrware Basket |
|
- | |||||
| 2 | 806760 | Sml Item Basket |
|
- | |||||
| 3 | 809721 | Slide Cap |
|
- | |||||
| 4 | 809346 | Lower Rack Asm |
|
- | |||||
| 5 | 809497 | Upper Rack Asm |
|
- | |||||
| 6 | 809501 | Rack Slide |
|
- | |||||
| 7 | 807008 | Wheel Asm |
|
- | |||||
| 8 | 809500 | Rack Wheel Asm |
|
- | |||||
| 9 | 809502 | Slide Cap Pin |
|
- |
