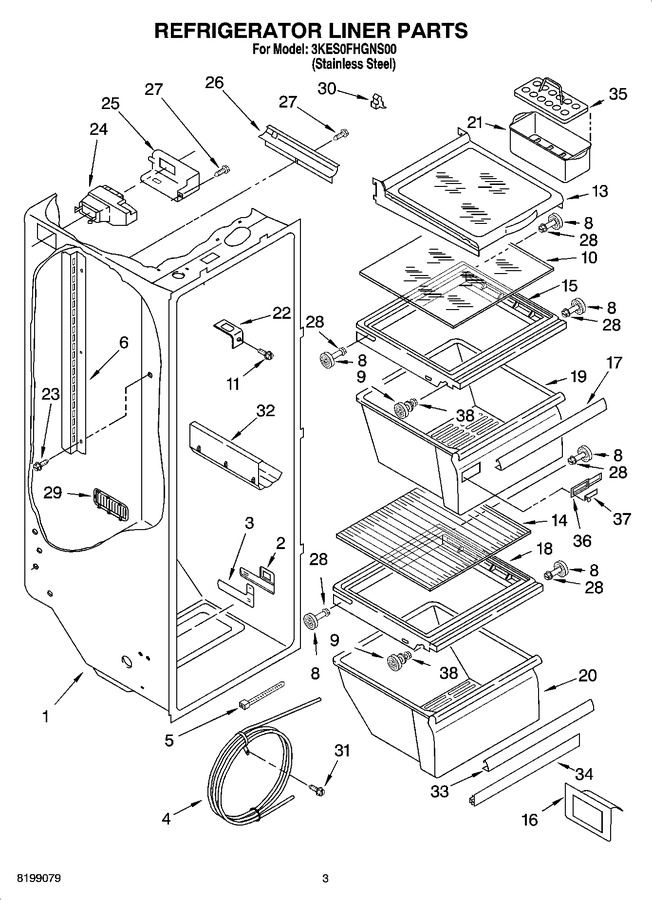

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	2194744		Escutcheon, Meat Pan Control				$ 91.28
3	2182757		Slide Meat Pan Control				$ 75.15
4	WP2256126		Reservoir   (Replaces: 2209687)				$ 168.85
5	WP2205813		Wire Tie   (Replaces: 2205813)				$ 7.72
6	2206270		Shelf Ladder (2)		Appelez-nous	-
8	WP2196483		Stud   (Replaces: 2196483)				$ 10.35
9	W11223328		Stud   (Replaces: 2196485)			Immediately	$ 14.07
10	W10864399		Glass, Cover   (Replaces: 2174150)				$ 220.98
11	WP488488		Screw (2)   (Replaces: 489290)				$ 7.68
13	2188698		Shelf, Glass (3)		Appelez-nous	-
14	W10864399		Glass, Cover   (Replaces: 2179259)				$ 220.98
15	W10508993		Crisper Cover   (Replaces: 2209698)				$ 291.29
16	2179350		Deflector				$ 81.80
17	WP2179234		Trim, Crisper Pan   (Replaces: 2255593)				$ 84.35
18	W10508993		Cover, Meat Pan   (Replaces: 2311726)				$ 291.29
19	WP2188656		Crisper Pan   (Replaces: 2188652)				$ 136.40
20	WP2188664		Meat Pan   (Replaces: 2188654)			Immediately	$ 85.30
21	W10136387A		Egg Bin   (Replaces: 2216625)				$ 18.61
22	WP2256085		Bracket Retainer   (Replaces: 2256085)				$ 34.38
23	WP489478		Screw   (Replaces: 489478)				$ 7.75
24	WPW10129864		Air Diffuser Assembly   (Replaces: 2209752)				$ 344.30
25	WP2212240		Air Diffuser Cover   (Replaces: 2212240)				$ 131.57
26	2150330		Cover, Conduit		Appelez-nous	-
27	W10759522		Screw   (Replaces: 486298)				$ 7.75
28	WP3400806		Screw   (Replaces: 8281158)				$ 7.71
29	2257741		Louver		Appelez-nous	-
30	2215823		Clip, Air Duct   (Replaces: 842534)				$ 10.42
31	488280		Screw		Appelez-nous	-
32	W10777924		Rack, Wine & Egg   (Replaces: 2179404)				$ 23.60
33	WP2179234		Trim, Meat Pan   (Replaces: 2255592)				$ 84.35
34	2209704		Extension		Appelez-nous	-
35	WP2177817		Egg Carrier   (Replaces: 2177817)				$ 17.89
36	WP2179343		Housing, Humidity Control   (Replaces: 2179343)				$ 32.40
37	WP2179342		Slide, Humidity Control   (Replaces: 2179342)				$ 29.14
38	WP3-24004-109		Screw   (Replaces: 3400894)				$ 8.05
