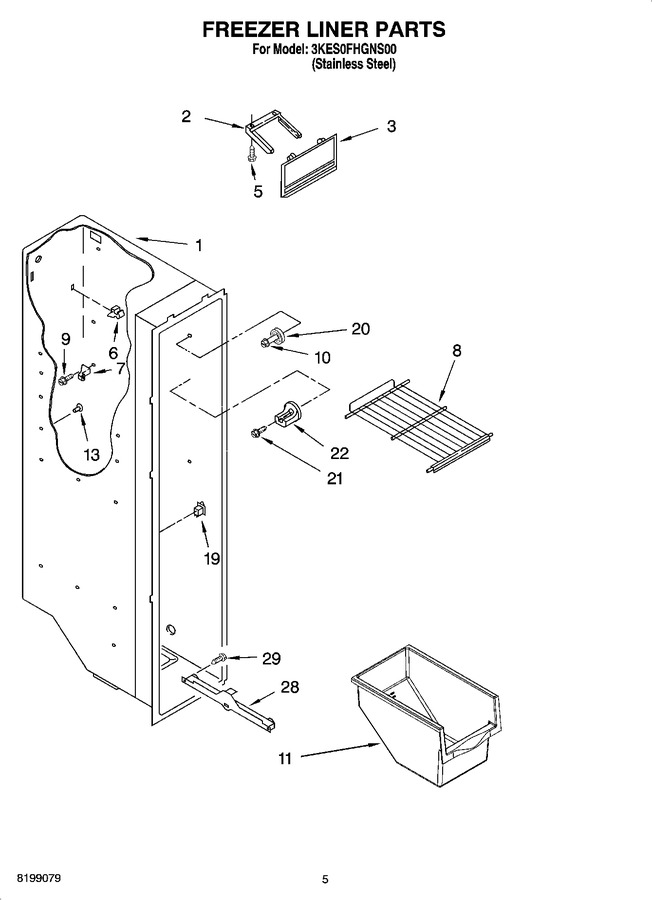

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Seviceable Part)		Appelez-nous	-
2	1115380		Slide, Ice Door		Appelez-nous	-
3	2171712		Door, Ice Compartment				$ 66.58
5	WP489478		Screw   (Replaces: 489478)				$ 7.75
6	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.42
7	2196206		Support, Stud (4)		Appelez-nous	-
8	2174269		Shelf (1)		Appelez-nous	-
8	2174270		Shelf (2)		Appelez-nous	-
9	W10142289		Screw   (Replaces: 3400893)				$ 9.15
10	WP3400806		Screw   (Replaces: 8281158)				$ 7.71
11	2171707		Freezer Bin		Appelez-nous	-
13	2176134		Grommet (4)				$ 5.83
19	W11457217		Switch, Rocker Arm   (Replaces: 1115373)				$ 38.18
20	WP2196483		Stud   (Replaces: 2196483)				$ 10.35
21	W10142289		Screw   (Replaces: 3400893)				$ 9.15
22	2196207		Stud, Rear				$ 7.61
28	1115383		Slide, Ice Container (left Side)		Appelez-nous	-
28	W10845583		Slide, Ice Container (right Side)   (Replaces: 1119293)				$ 123.92
29	718257		Screw   (Replaces: 489100)		Appelez-nous	-
